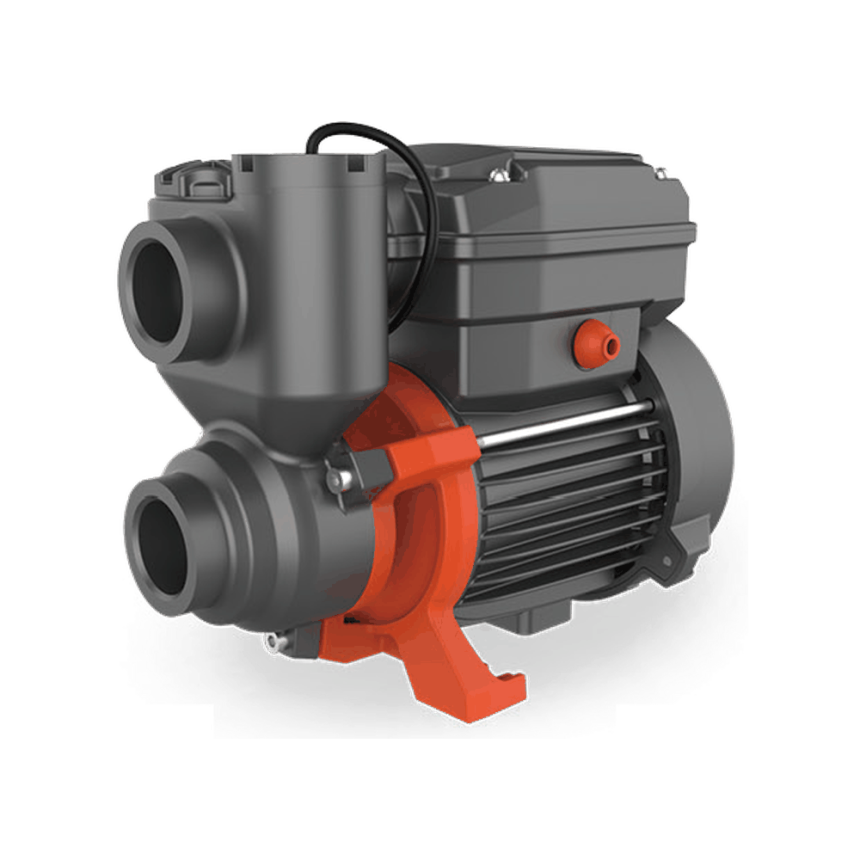

Peripheral Pump
PQ
Peripheral pumps for transferring clean water or other liquids with physical properties similar to water.
2.7 m³/hMax. flow
55Max. head
0.37-0.75 kWPower range
Applications and features
+60°CMax. liquid temperature
8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- The cast iron pump body and bracket have undergone special anti-rust treatment
- Brass impeller
- AISI 304 shaft
Motor
- Low noise & long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Control System
- Microcomputer automatic control
- Water shortage protection
- Low temperature protection
Identification code

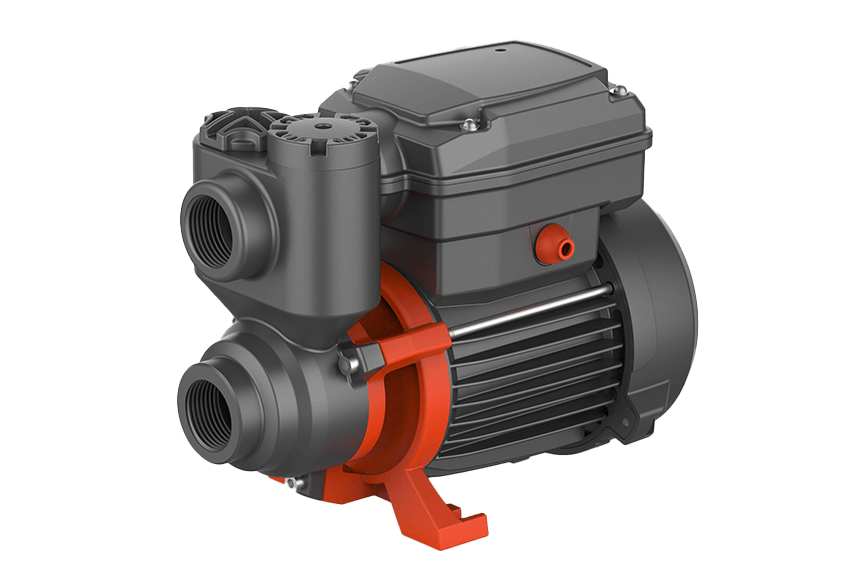

PQ50E
- PQ
- Vortex Pump Series
- 50
- Rated Output Power
- E
- Automatic (Integrated Circuit Board)
Swipe horizontally to compare model, phase, power and all flow/head values.

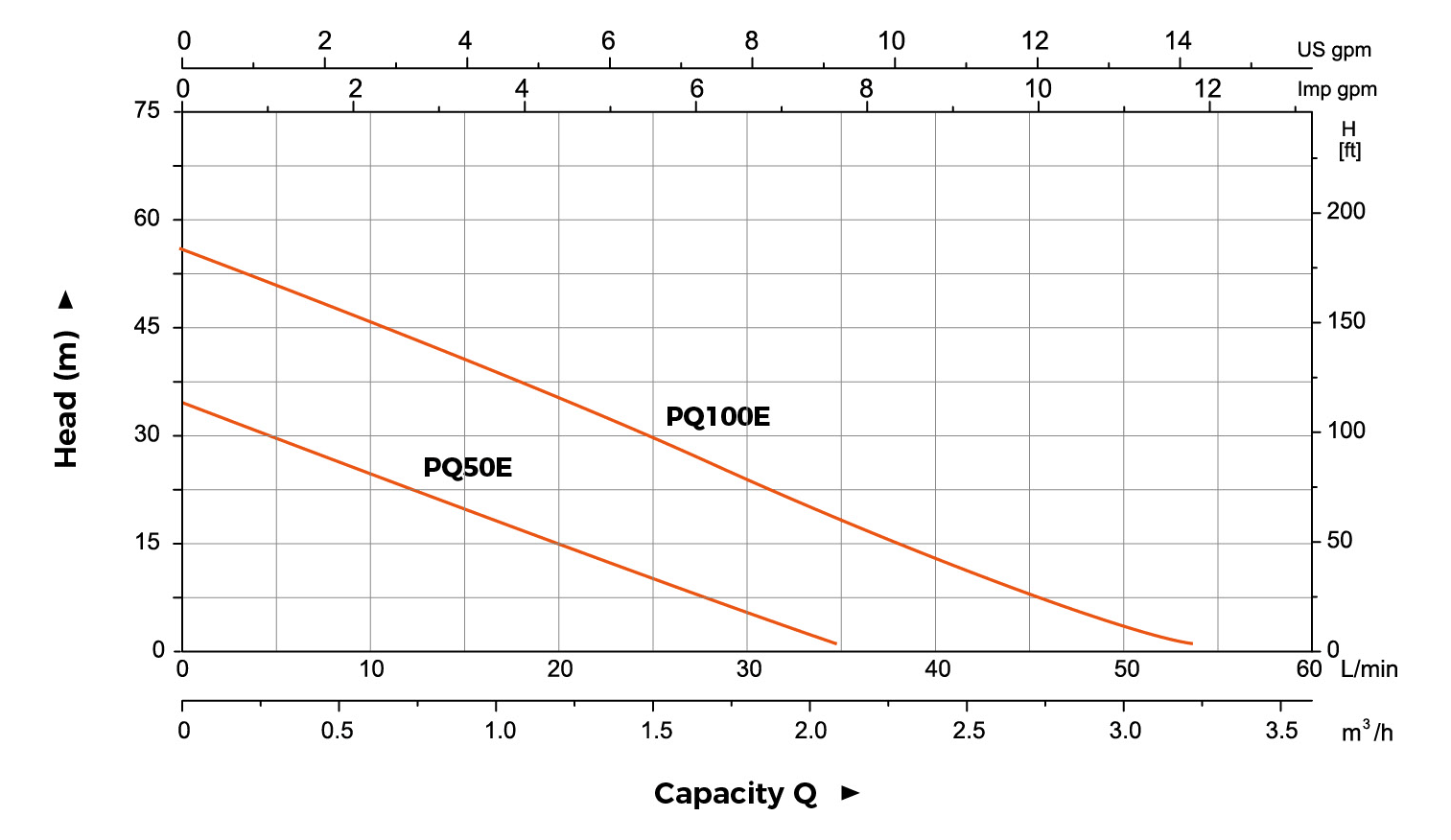

Hydraulic performance curves

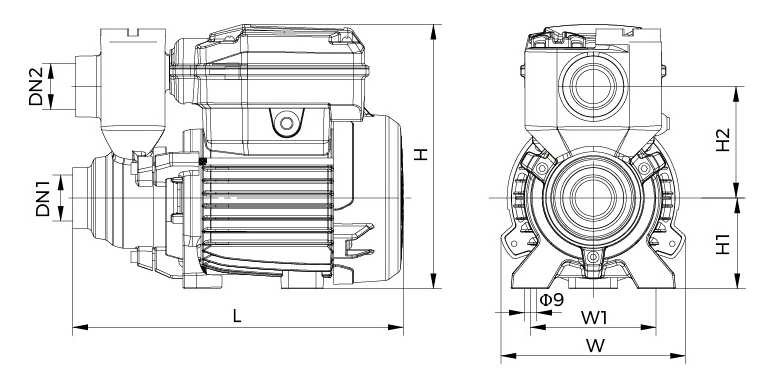

Dimensions and connections

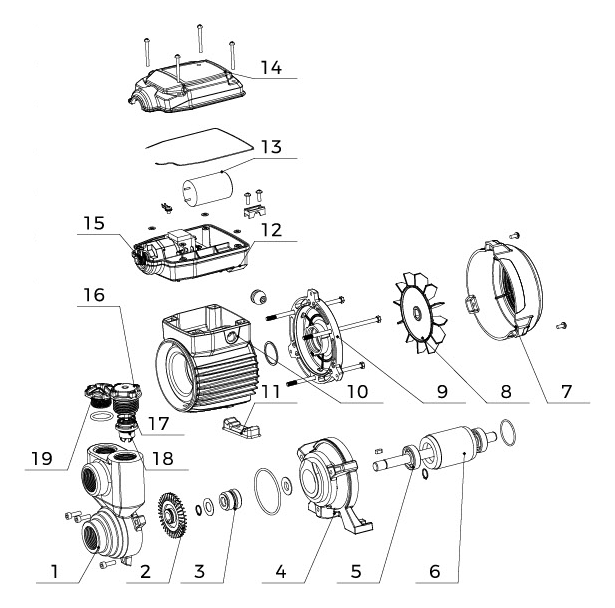

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | HT200 |
| 2 | Impeller | HPb59-1 |
| 3 | Mechanical seal | - |
| 4 | Pump support | HT200 |
| 5 | Deep groove ball bearing | - |
| 6 | Rotor | - |
| 7 | Fan cover | PP |
| 8 | Fan | PP-GF10 |
| 9 | End plate | ADC12 |
| 10 | Stator | - |
| 11 | Arm-brace | PP-GF30 |
| 12 | Cover box | ABS |
| 13 | Capacitor | - |
| 14 | Terminal box cover | ABS |
| 15 | Pressure sensor | - |
| 16 | Pump cover | PA6-GF25 |
| 17 | Spring | 304 |
| 18 | Valve rod | PPO-GF30 |
| 19 | Water inlet connector | PA6-GF25 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
