Peripheral Pump

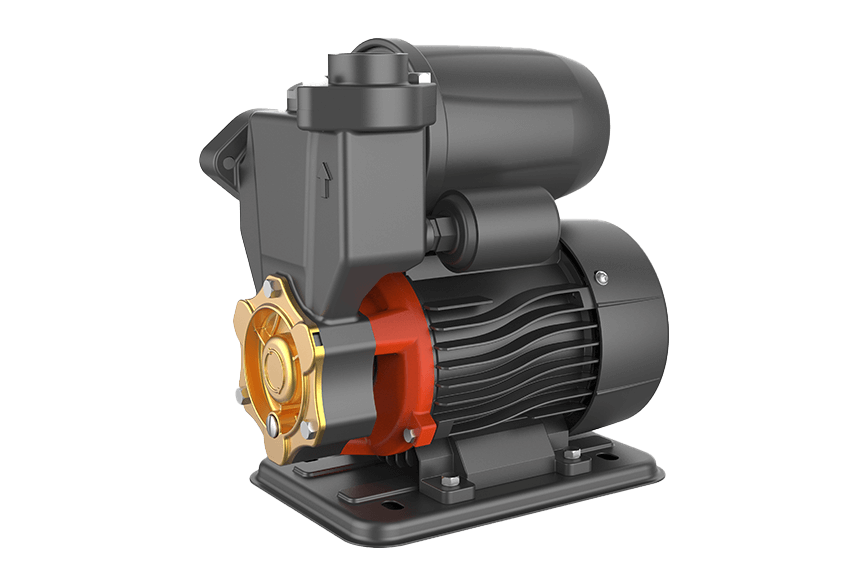

LKSm-A
Self-priming peripheral pumps with air tank for transferring clean water or other liquids similar to water in physical and chemical properties.
3 m³/hMax. flow
55Max. head
0.125-0.75 kWPower range
Applications and features
+60°CMax. liquid temperature
+9 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- With 2 L pressure tank for automatic operation
- Special anti-rust treatment
- Brass impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Copper winding
- Built-in thermal protector
Identification code
LKSm350A
- L
- LEO Product Style
- K
- Peripheral Pump
- S
- Self-priming
- m
- Single Phase Motor
- 350
- Power (W)
- A
- Air Tank
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Screw | Q235 |
| 2 | Pump cover | Cu |
| 3 | O-ring | NBR |
| 4 | Impeller | HPb59-1 |
| 5 | Mechanical seal | - |
| 6 | Water inlet connector | HT200 |
| 7 | Check valve | - |
| 8 | Filling plug | HPb59-1 |
| 9 | Pressure switch | - |
| 10 | Pressure tank | - |
| 11 | Deep groove ball bearing | - |
| 12 | Rotor | - |
| 13 | Pump support | HT200 |
| 14 | Pump body | HT200 |
| 15 | Cover box | ABS |
| 16 | Cable gland | NBR |
| 17 | Gasket | NBR |
| 18 | Capacitor | - |
| 19 | Stator | - |
| 20 | End plate | ADC12 |
| 21 | Fan | PP |
| 22 | Fan cover | PP |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
