Peripheral Pump

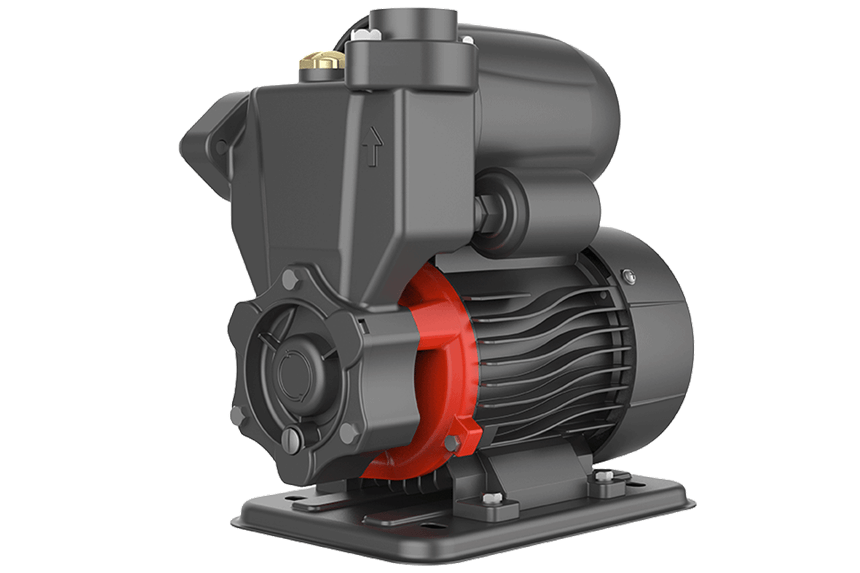

LKSm
Self-priming peripheral pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
2.7 m³/hMax. flow
45Max. head
0.125-0.55 kWPower range
Applications and features
+60°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure

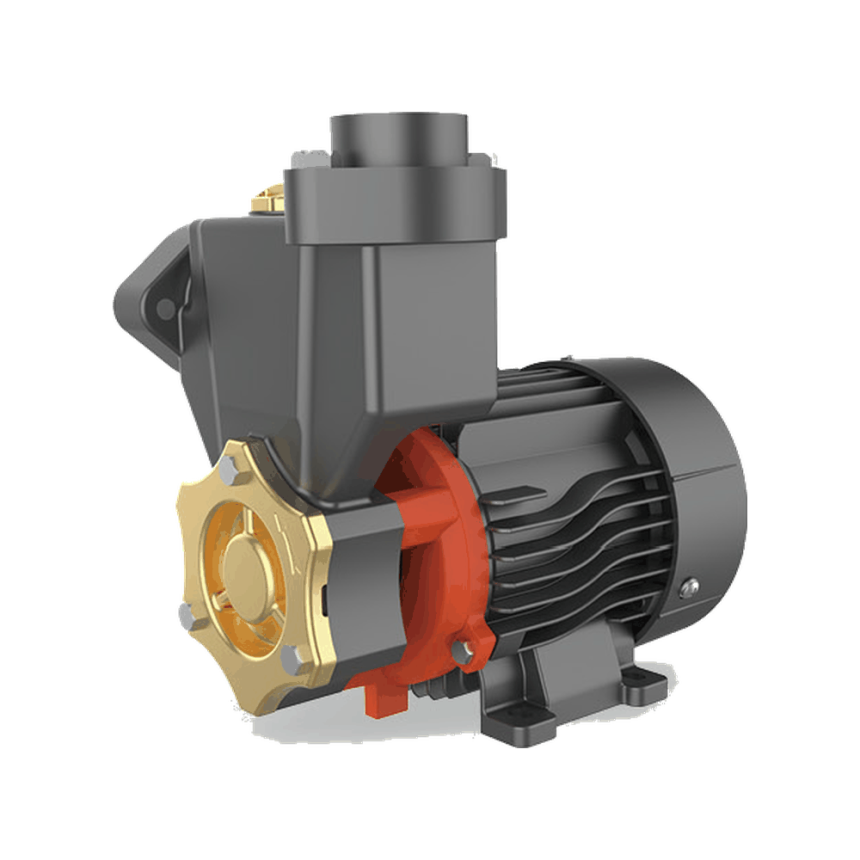

Product identification
Pump
- Special anti-rust treatment
- Brass impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Copper winding
- Built-in thermal protector
Identification code
LKSm126
- L
- LEO Product Style
- K
- Peripheral Pump
- S
- Self-priming
- m
- Single Phase Motor
- 126
- Power (W)
Swipe horizontally to compare model, phase, power and all flow/head values.

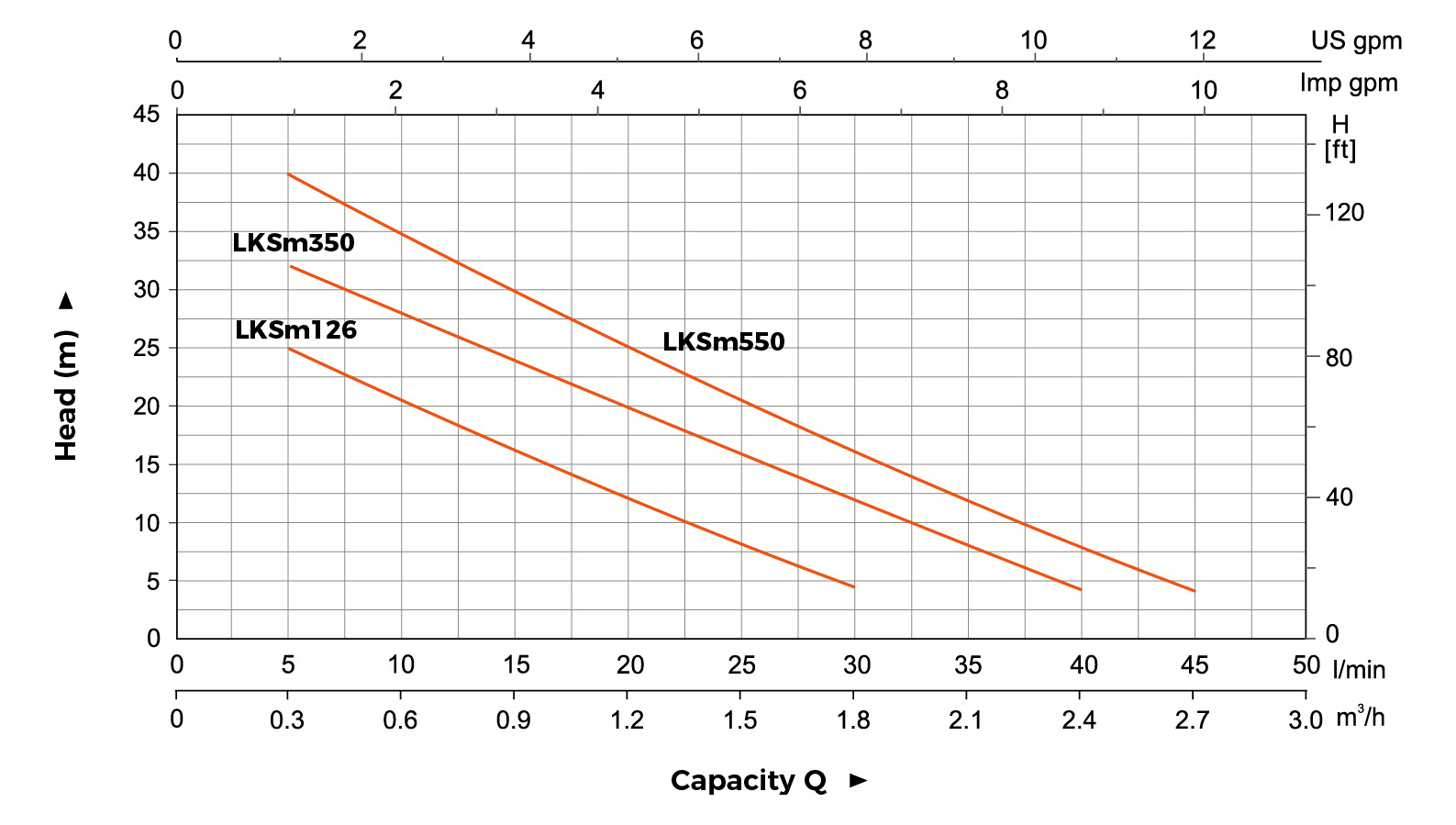

Hydraulic performance curves

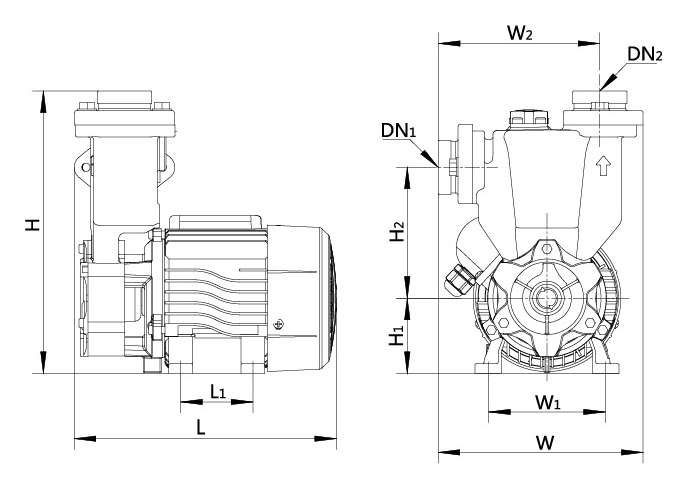

Dimensions and connections

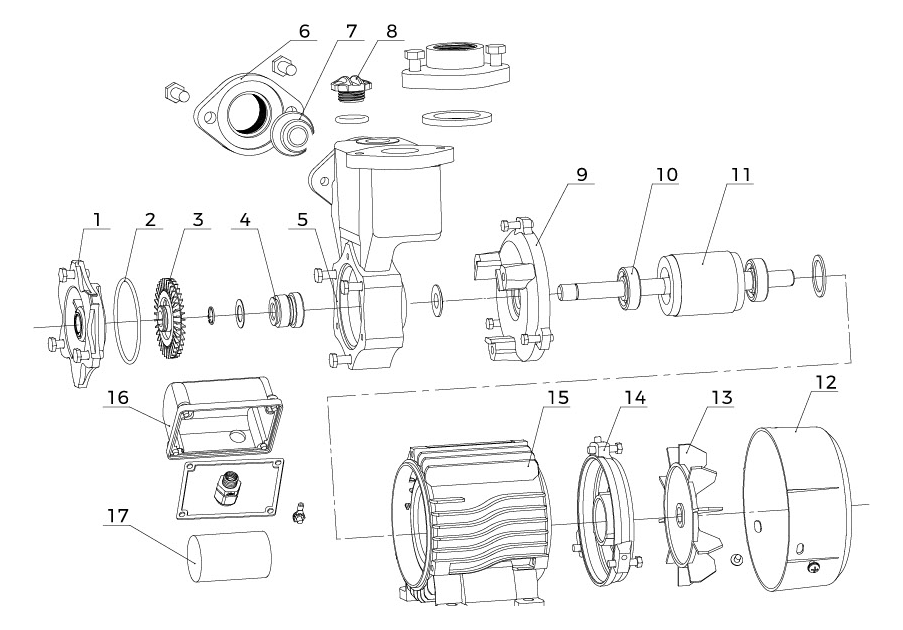

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump cover | Cu |
| 2 | O-ring | NBR |
| 3 | Impeller | HPb59-1 |
| 4 | Mechanical seal | - |
| 5 | Pump body | HT200 |
| 6 | Water inlet connector | HT200 |
| 7 | Check valve | - |
| 8 | Filling plug | HPb59-1 |
| 9 | Pump support | HT200 |
| 10 | Deep groove ball bearing | - |
| 11 | Rotor | - |
| 12 | Fan cover | PP |
| 13 | Fan | PP-GF10 |
| 14 | End plate | ADC12 |
| 15 | Stator | - |
| 16 | Cover box | PP-GF20 |
| 17 | Capacitor | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
