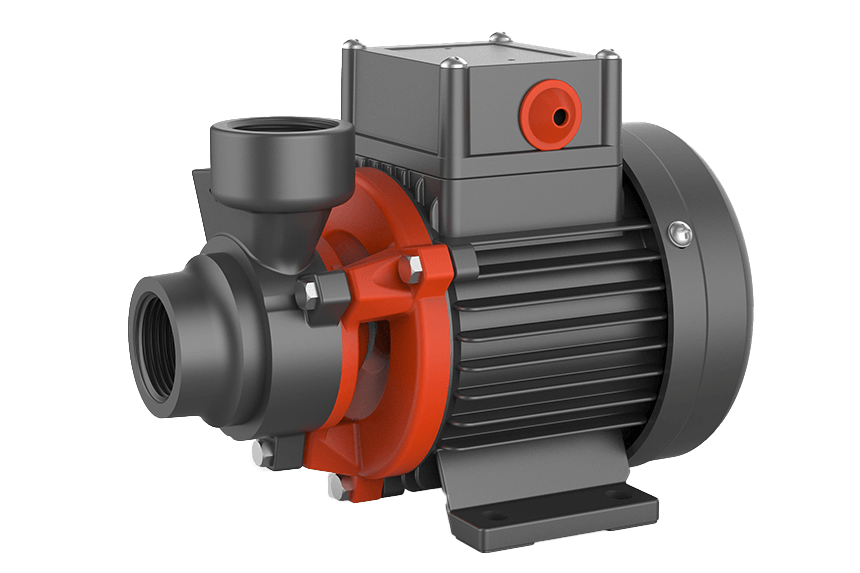

Peripheral Pump
XKm
Peripheral pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
1.5 m³/hMax. flow
20 mMax. head
0.11 kWPower
Applications and features
+60°CMax. liquid temperature
8 mMax. suction
+50°CMax. ambient temperature
Product identification
Pump
- Special anti-rust treatment for cast iron pump body and support
- Brass impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosure class: IPX4
Identification code
XKm501
- XK
- Peripheral Pump
- m
- Single Phase Motor
- 50
- Impeller Nominal Diameter (mm)
- 1
- Improvement Code
Swipe horizontally to compare model, phase, power and all flow/head values.

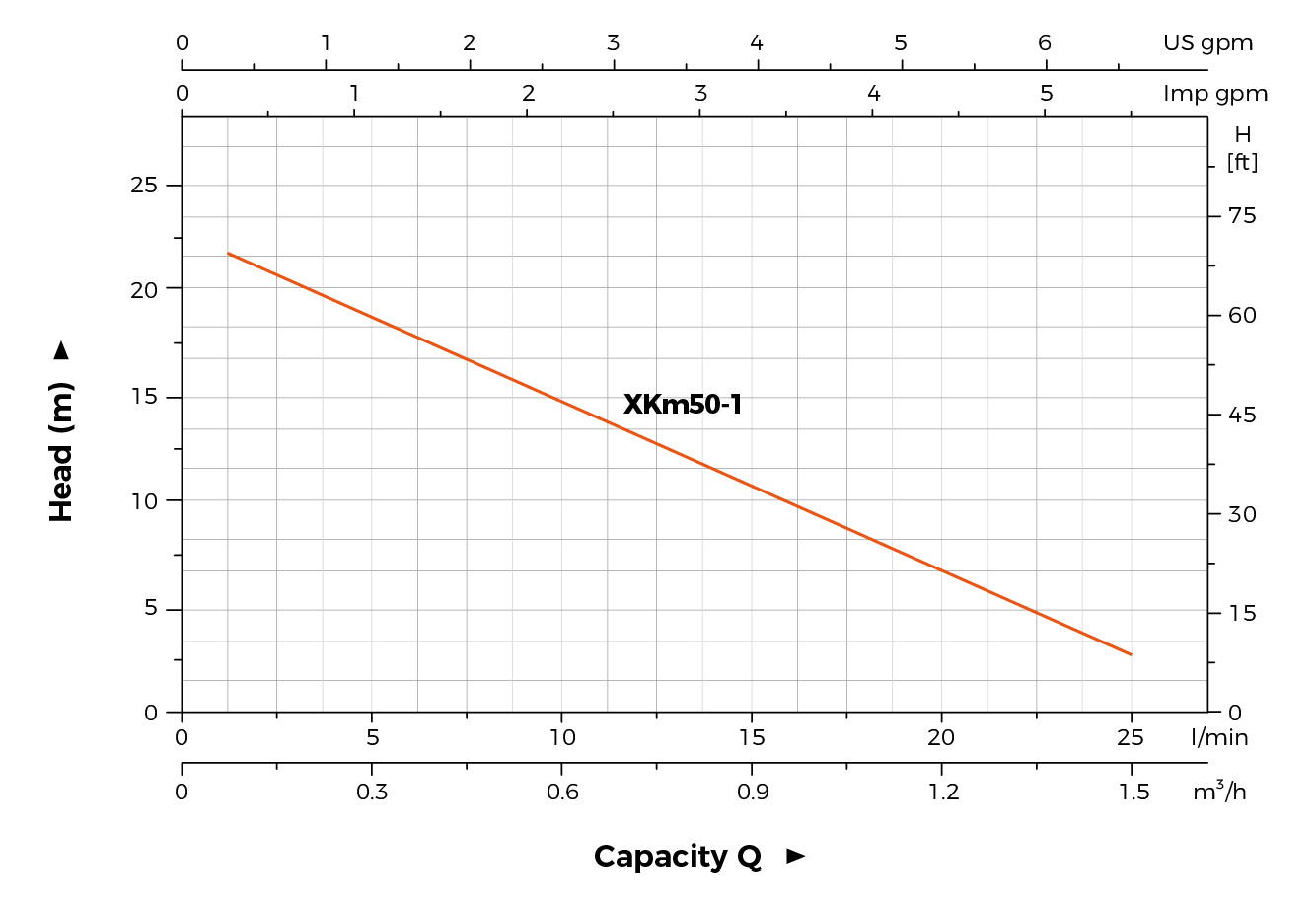

Hydraulic performance curves

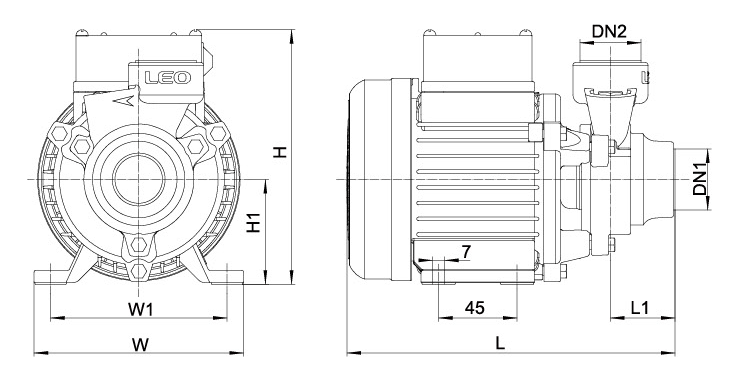

Dimensions and connections

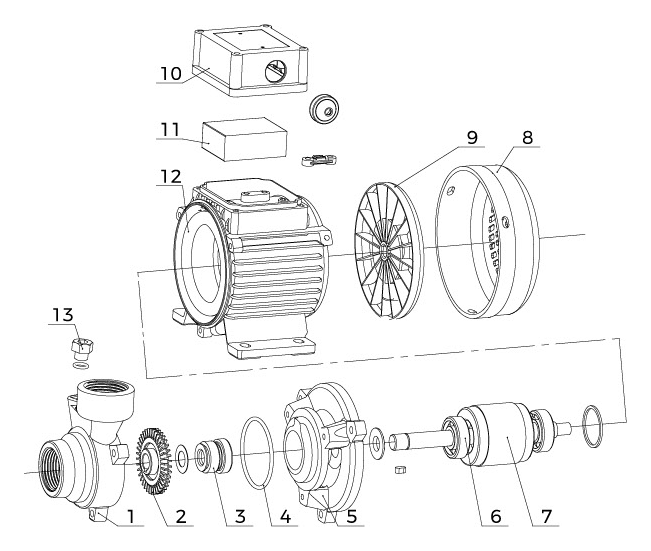

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | HT200 |
| 2 | Impeller | HPb59-1 |
| 3 | Mechanical seal | - |
| 4 | O-ring | NBR |
| 5 | Pump support | HT200 |
| 6 | Deep groove ball bearing | - |
| 7 | Rotor | - |
| 8 | Fan cover | PP |
| 9 | Fan | PP-GF10 |
| 10 | Cover box | ABS |
| 11 | Capacitor | - |
| 12 | Stator | - |
| 13 | Filling plug | HPb59-1 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
