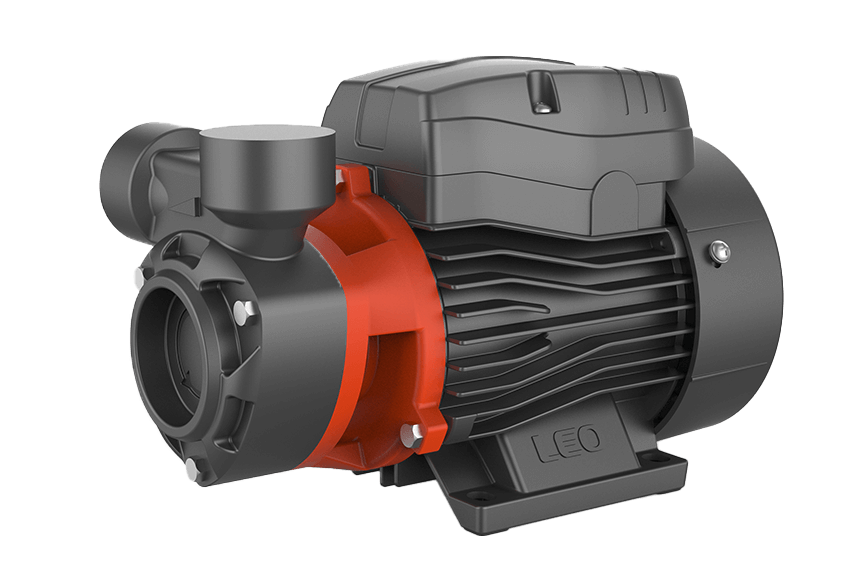

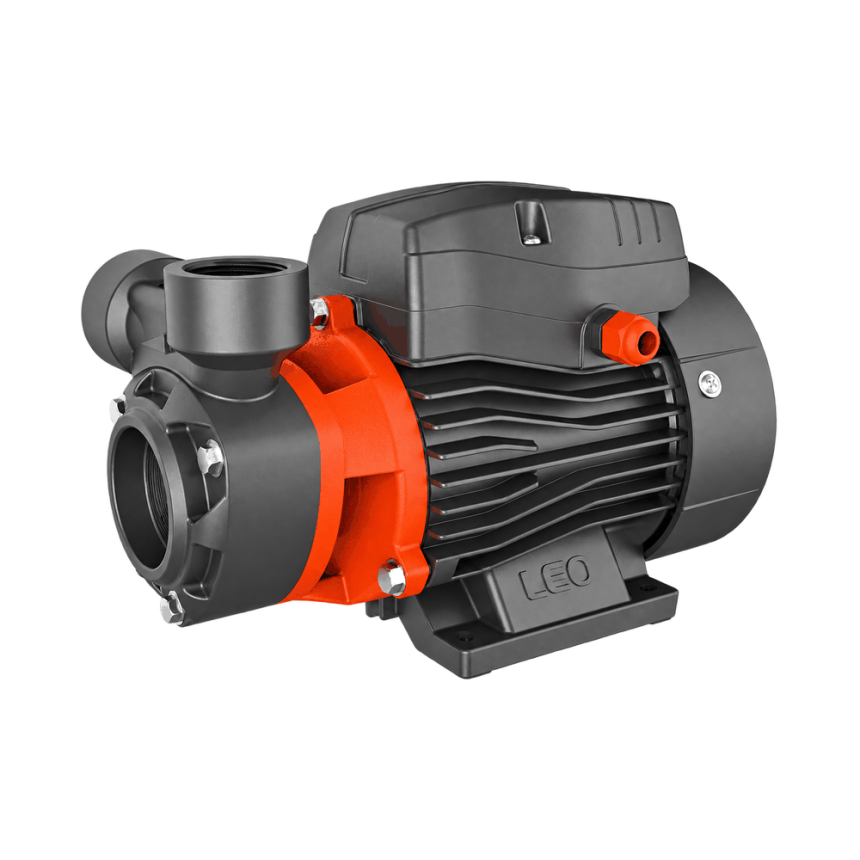

Peripheral Pump
AQm
Peripheral pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
2.7 m³/hMax. flow
75Max. head
0.37-0.75 kWPower range
Applications and features
+60°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- Special anti-rust treatment for cast iron pump body and support
- Brass impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
Identification code
AQm37
- AQ
- Peripheral Pump
- m
- Single Phase Motor
- 37
- Power (×10 W)
Swipe horizontally to compare model, phase, power and all flow/head values.

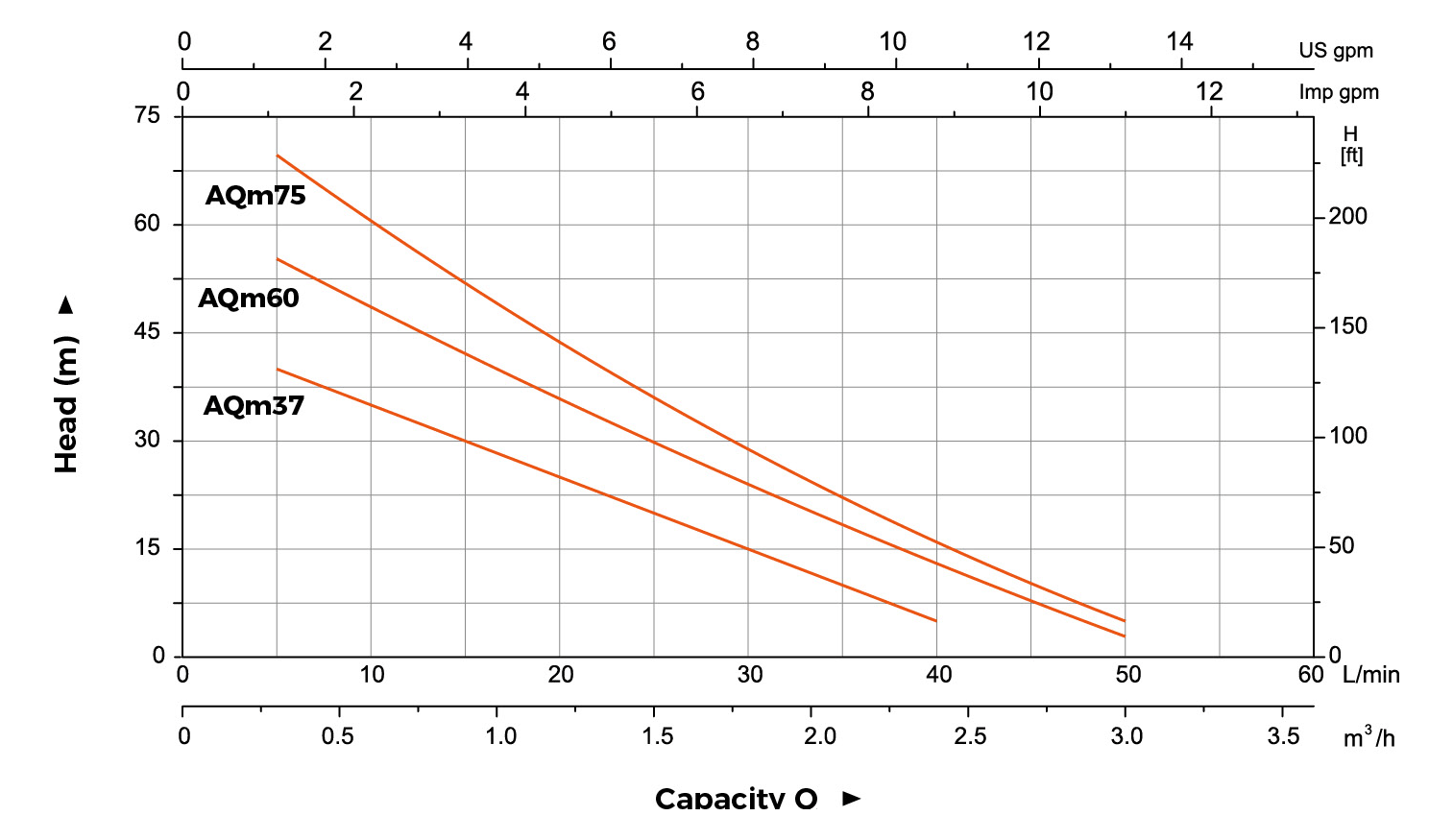

Hydraulic performance curves

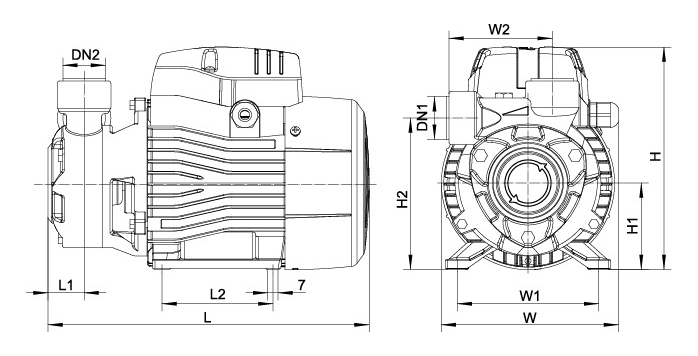

Dimensions and connections

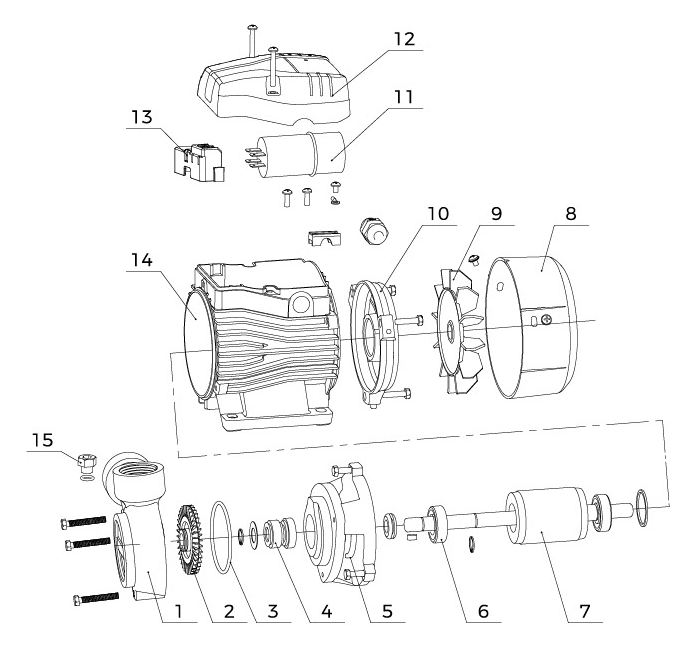

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | HT200 |
| 2 | Impeller | HPb59-1 |
| 3 | O-ring | NBR |
| 4 | Mechanical seal | - |
| 5 | Pump support | HT200 |
| 6 | Deep groove ball bearing | - |
| 7 | Rotor | - |
| 8 | Fan cover | PP |
| 9 | Fan | PP-GF10 |
| 10 | End plate | ADC12 |
| 11 | Capacitor | - |
| 12 | Cover box | PP-GF20 |
| 13 | Wiring base assembly | PC |
| 14 | Stator | - |
| 15 | Filling plug | HPb59-1 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
