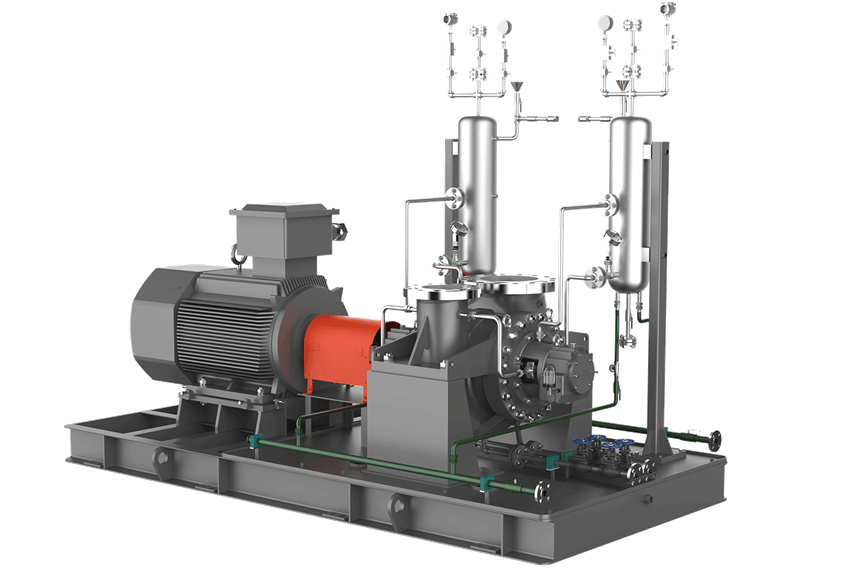

HR Series Heavy Duty Petrochemical Processing Pump

HR Series Heavy Duty Petrochemical Processing Pump
HR Series Heavy Duty Petrochemical Processing Pump

HR Series Heavy Duty Petrochemical Processing Pump

HR Series pump is horizontal, between bearing support, radially split, double volute, single stage, double stages or 3 stages, single stage single suction or double suction centrifugal pump. The pump type is mainly for all kinds of equipment in the high temperature, low temperature, high pressure and other important station development of centrifugal pump, according to the device pipeline demand arbitrary choice of pump inlet and outlet direction.

Applications

petrochemical industry

oil refining

coal to oil

coal chemical industry

natural gas processing

seawater desalination

offshore drilling equipment

Used in oil refining, petrochemical industry, coal to oil, coal chemical industry, natural gas processing, seawater desalination, offshore drilling equipment and other industries under high temperature, low temperature or high pressure conditions, conveyor belt solid particles of corrosive or strong corrosive medium, liquefied petroleum gas and other flammable, explosive, or toxic medium.

It is typically used in high temperature tower bottom pumps such as flash bottom oil and normal bottom oil in refinery units, semi-lean liquid pumps and methanol rich pumps in coal chemical units.

Features

HR Heavy Duty Petrochemical Process Pump Features

HR Heavy Duty Petrochemical Process Pump Features

Performance Scope

HR Heavy Duty Petrochemical Process Pump Performance Scope
