HZ series axial flow pump is developed by our factory according to the characteristics of alkali making, salt making citric acid, sodium powder and other industries, referring to the advantages of foreign advanced products, and has reached the advanced level of similar foreign products, the product has been recognized and praised by the majority of users since it entered the market. The rear door structure, composed of impeller, pump cover and bearing box rotor parts, can be extracted from the pump body, do not need to remove the inlet and outlet pipeline, easy to maintain.

OH-F horizontal cantilever pump is end suction, top discharge, single stage radial split, foot mounted processing pump, API code is OH1, suit to pumping clean or slightly polluted, chemical neutral or corrosive medium. OH-C horizontal cantilever pump is end suction, top discharge, single-stage radial split, centerline support processing pump, API code is OH2, suit to pumping clean or slightly polluted, chemical neutral or corrosive, low temperature or high temperature medium. OH series pump conforms to the American Petroleum Institute API610 10th/API610 11th design standard.

HT series hydraulic power recovery turbine through high pressure liquid driven turbine rotation to convert the pressure energy into the rotor kinetic energy driving equipment, so that the liquid in the device rich pressure can be recycled. All kinds of centrifugal pumps can be reformed into HPRT after the technical improvement of key parts.

HR Series pump is horizontal, between bearing support, radially split, double volute, single stage, double stages or 3 stages, single stage single suction or double suction centrifugal pump. The pump type is mainly for all kinds of equipment in the high temperature, low temperature, high pressure and other important station development of centrifugal pump, according to the device pipeline demand arbitrary choice of pump inlet and outlet direction.

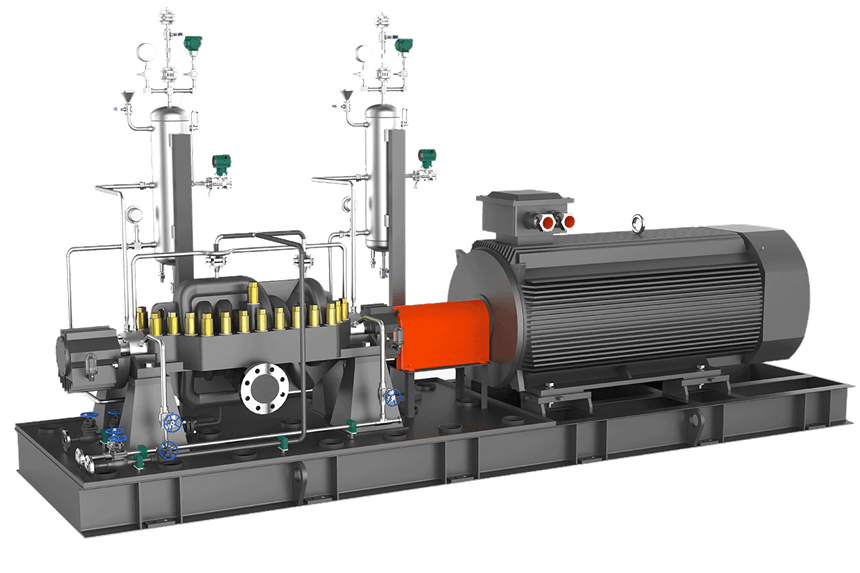

T-G series pump is a new generation of heavy load double-casing horizontal multistage centrifugal pump independently developed by our company, the inner core of the pump adopts segmental structure and is supported by both ends. Used for pumping all kinds of clean or particle, neutral or corrosive medium, especially for LPG, flammable, toxic, high temperature, high pressure liquid.
Flow Q：3~1200m3/h
Pressure P：42.0MPa
Head H：3600m
Temperature T：-80~+450℃
