- Civil engineering
- Mines, quarries, Coal ore & slurries
- Sewage treatment plants
- General pumping purposes

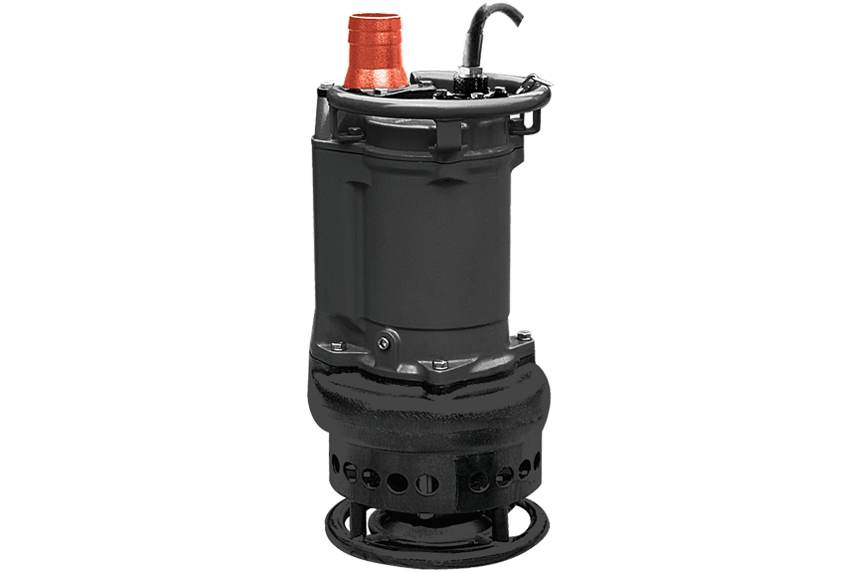

Submersible Sewage Pump
KBS
Submersible slurry pumps for sludge and liquids containing mud and bentonite.
192 m³/hMax. flow
21.5 mMax. head
4-9 kWPower range
Applications and features
+40°CMax. liquid temperature
25 mMax. immersion depth
30 mmMax. solid diameter
B / IP68Insulation / Enclosure
Product identification
Pump
- Cable length: 8 m
Motor
- Copper winding
Identification code
80KBS44
- 80
- Outlet Diameter (mm)
- KBS
- Submersible Slurry Pump
- 4
- Motor Pole
- 4
- Power (kW)
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves

Dimensions and connections

Construction and materials

| Part no. | Part | Material |
|---|---|---|
| 1 | Hose coupling | Cast iron |
| 2 | Handle | Steel |
| 3 | Upper cover | Cast iron |
| 4 | Motor protector | - |
| 5 | Motor body | Cast iron |
| 6 | Pump body | Cast iron |
| 7 | Strainer | Steel |
| 8 | Cable | - |
| 9 | Bearing | - |
| 10 | Rotor | - |
| 11 | Stator | - |
| 12 | Bearing | - |
| 13 | Bearing house | Cast iron |
| 14 | Mechanical seal | Sic-Sic/Sic-Sic |
| 15 | Oil seal | - |
| 16 | Impeller | High chrome alloy |
| 17 | Inlet plate | High chrome alloy |
| 18 | Inlet base | Cast iron |
| 19 | Agitator | High chrome alloy |
Package dimensions

Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
