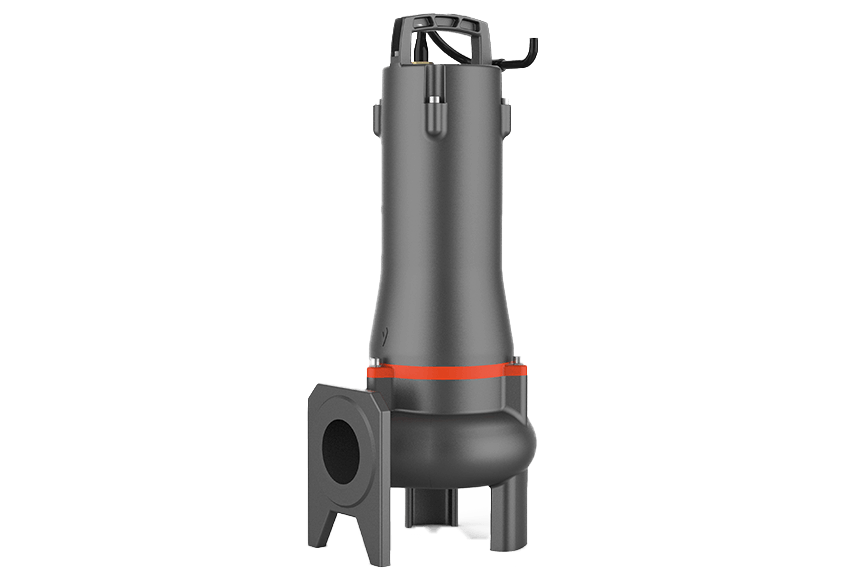

Submersible Sewage Pump

SWU-L

Name: SWU-L Submersible Sewage Pump
Brand: LEO

Submersible sewage pump for wastewater and sewage containing impurities and long-fiber substances.

Request an inquiry View performance data

27 m³/hMax. flow

13 mMax. head

0.55-0.75 kWPower range

Applications and features

Drainage of wastewater from attenuation, purifying and sewage tanks in water treatment plants
Drainage of wastewater containing fibrous additives from leather and food-processing factories
Sewage management for accumulated water, septic tanks and stock farms
Pumping sewage from hotels, restaurants, schools and public buildings

0 - 40 °CLiquid temperature

10 mMax. immersion depth

4 - 10Liquid pH value

F / IP68Insulation / Enclosure

Open vortex impeller, suitable for liquid containing impurities and long-fiber substances
Flexible installations with hoses, pipes or quick-coupling systems
Float switch as standard accessory for single-phase models up to 1.1 kW
Cable length: 10 m
Double-end mechanical seal
Stainless steel welded shaft

50SWUm960.55L

Swipe horizontally to compare model, phase, power and all flow/head values.

Part no.	Part	Material
1	Handle	ZG45
2	Upper cover	HT200
3	Upper bearing seat	HT200
4	Motor body	HT200
5	Oil chamber	HT200
6	Pump cover	HT200
7	Pump body	HT200
8	Impeller	HT200
9	Oil seal	-
10	Mechanical seal	Upper: SiC/Carbon, Lower: SiC/SiC
11	Bearing	-
12	Rotor	-
13	Stator	-

For product selection, availability or project support, contact our team through the official contact channel.
