- Pressure sewage systems
- Drainage of wastewater from individual residences, apartment buildings, recreational developments and motels
- Wastewater transfer for commercial buildings, industrial plants, wastewater sampling and small hospitals
- Wastewater drainage for schools and federal, state and local parks
- Transfer of various wastewater and sewage

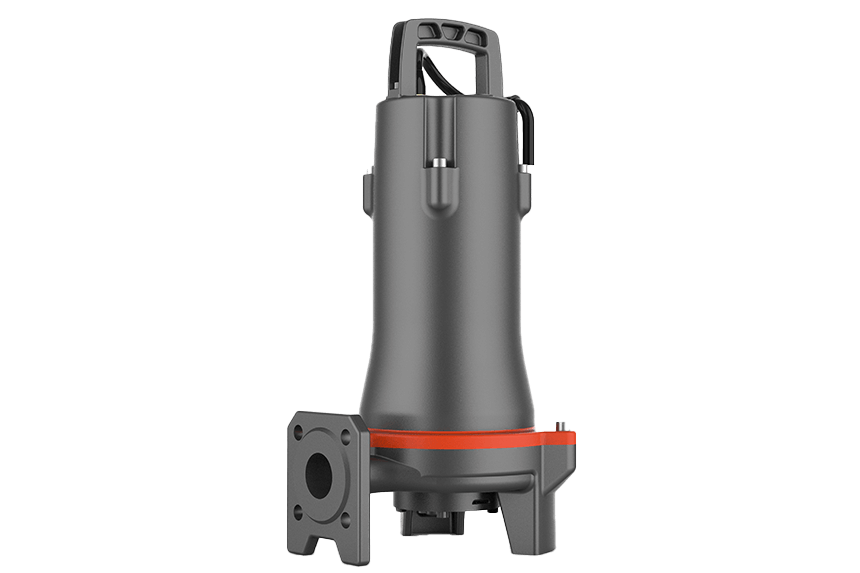

Submersible Sewage Pump
SWP-L
Submersible sewage pump for pressure sewage systems and wastewater transfer with a semi-open impeller and reliable grinding system.
12 m³/hMax. flow
30.2 mMax. head
1.1-2.2 kWPower range
Applications and features
0 - 40 °CLiquid temperature
10 mMax. immersion depth
4 - 10Liquid pH value
F / IP68Insulation / Enclosure
Product identification
Pump
- Semi-open vortex impeller & reliable grinding system
- Flexible installations with hoses, pipes or quick-coupling systems
- Float switch as standard accessory for single phase (≤1.1 kW)
- Cable Length: 10m
- Double-end mechanical seal
- Stainless steel welded shaft
- Flange elbow as standard
Motor
- Frequency/Pole number: 50 Hz/2
- Bearing: Ball type
Identification code
32SWPm3.6171.1L/QG
- 32
- Nominal Diameter (mm)
- SW
- Submersible Sewage Pump
- P
- Semi-open Impeller
- m
- Single Phase Motor (Omitted for three-phase motor)
- 3.6
- Rated Flow (m³/h)
- 17
- Rated Head (m)
- 1.1
- Rated Power (kW)
- L
- Features
- /QG
- Cutting Blade
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Handle | ZG45 |
| 2 | Upper cover | HT200 |
| 3 | Upper bearing seat | HT200 |
| 4 | Motor body | HT200 |
| 5 | Oil chamber | HT200 |
| 6 | Pump cover | HT200 |
| 7 | Pump body | HT200 |
| 8 | Cutting ring | 108Cr17 |
| 9 | Radial cutter | 108Cr17 |
| 10 | Impeller | HT200 |
| 11 | Oil seal | - |
| 12 | Mechanical seal | Upper: SiC/Carbon, Lower: SiC/SiC |
| 13 | Bearing | - |
| 14 | Rotor | - |
| 15 | Stator | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
