- Drainage of wastewater from attenuation, purifying and sewage tanks in water treatment plants
- Drainage of wastewater containing fibrous additives from leather and food-processing factories
- Sewage management for accumulated water, septic tanks and stock farms
- Pumping sewage from hotels, restaurants, schools and public buildings

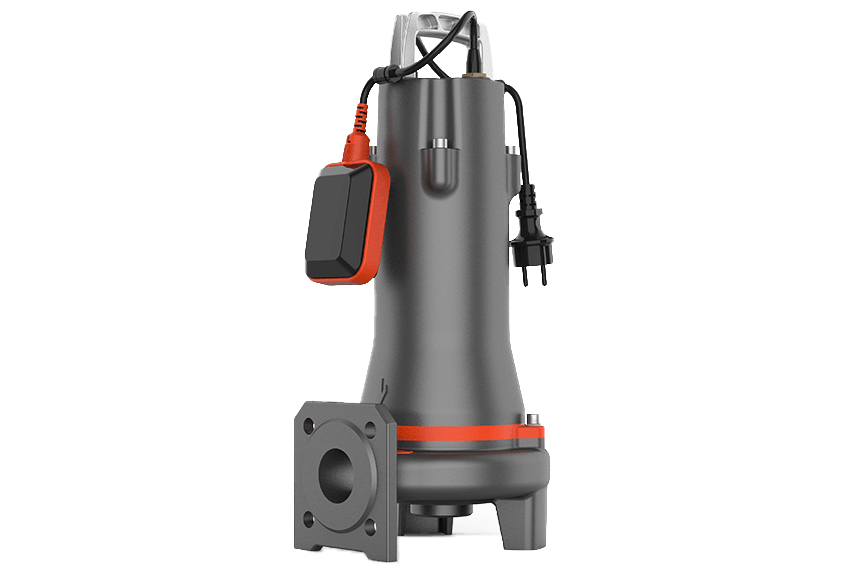

Submersible Sewage Pump
SWE-L
Submersible sewage pumps are designed for draining and pumping wastewater and sewage in water treatment, industrial, agricultural, hospitality, educational and public-building applications.
51 m³/hMax. flow
31.5 mMax. head
0.55-4 kWPower range
Applications and features
0-40°CLiquid temperature
10 mMax. immersion depth
4-10Liquid pH value
F / IP68Insulation / Enclosure
Product identification
Pump
- High-efficiency & anti-clogging enclosed channel impeller
- Flexible installations with hoses, pipes or quick-coupling systems
- Float switch as standard accessory for single phase (≤1.1 kW)
- Cable length: 10 m
- Double-end mechanical seal
- Stainless steel welded shaft
Motor
- Frequency/Pole number: 50 Hz/2
- Bearing: Ball type
Identification code
50SWEm10161.1L
- 50
- Nominal Diameter (mm)
- SW
- Submersible Sewage Pump
- E
- Enclosed Channel Impeller
- m
- Single Phase Motor (Omitted for three-phase motor)
- 10
- Rated Flow (m³/h)
- 16
- Rated Head (m)
- 1.1
- Rated Power (kW)
- L
- Features
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Handle | ZG45 |
| 2 | Upper cover | HT200 |
| 3 | Upper bearing seat | HT200 |
| 4 | Motor body | HT200 |
| 5 | Oil chamber | HT200 |
| 6 | Pump cover | HT200 |
| 7 | Pump body | HT200 |
| 8 | Impeller | HT200 |
| 9 | Oil seal | - |
| 10 | Mechanical seal | Upper: SiC/Carbon, Lower: SiC/SiC |
| 11 | Bearing | - |
| 12 | Rotor | - |
| 13 | Stator | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
