- Rural well water pumping
- Farming irrigation and drainage
- Garden watering and household applications
- Construction, aquaculture and fish ponds

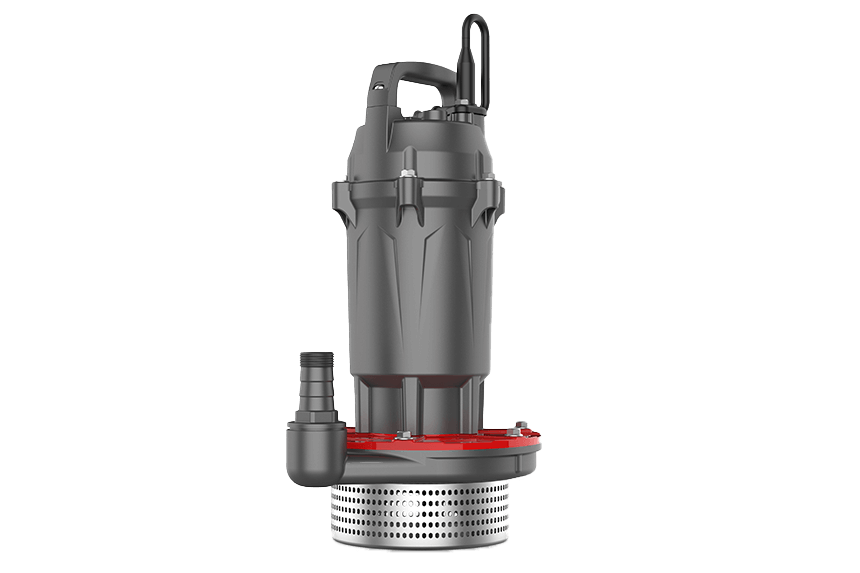

Submersible Pump
QDX-L
Submersible pumps for rural well water pumping, farming irrigation and drainage, garden watering, household applications, etc.
75 m³/hMax. flow
37.4 mMax. head
0.25–2.2 kWPower range
Applications and features
+40°CLiquid temperature
5 mMax. immersion depth
≤ 0.1%Maximum sand content
6.5–8Liquid pH
≤ 0.2 mmPassage of suspended solids
F / IP68Insulation / Enclosure
Product identification
Pump
- Cast iron pump body, aluminum motor casing
- Copper winding
- Built-in thermal protector
- Stainless steel shaft
Identification code
Q(D)X3180.55LA
- Q(D)X
- Submersible pump
- 3
- Rated flow (m³/h)
- 18
- Rated head (m)
- 0.55
- Power (kW)
- L
- Aluminum shell
- A
- Automatic operation with float switch
Dimensions and connections

Construction and materials

| Part no. | Part | Material |
|---|---|---|
| 1 | Filter | Stainless steel |
| 2 | Pump body | HT200 |
| 3 | O-Ring | NBR |
| 4 | Outlet connector | HT200 |
| 5 | Impeller | PPO |
| 6 | Oil seal | - |
| 7 | Cover of cylinder | ADC12 (0.25/0.37 kW), HT200 (0.55/0.75 kW) |
| 8 | Mechanical seal | - |
| 9 | O-Ring | NBR |
| 10 | Motor casing | ADC12 |
| 11 | Stator | - |
| 12 | Cable assembly | - |
| 13 | Handle | PP |
| 14 | Float switch | - |
| 15 | Top cover | ADC12 |
| 16 | Capacitor | - |
| 17 | O-Ring | NBR |
| 18 | End cover | ADC12 |
| 19 | Wave spring pad | - |
| 20 | Rotor | - |
| 21 | Bearing | - |
Package dimensions

Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
