- Small living water supply
- Automatic water sprinkler system
- Garden irrigation
- Temporary water taking

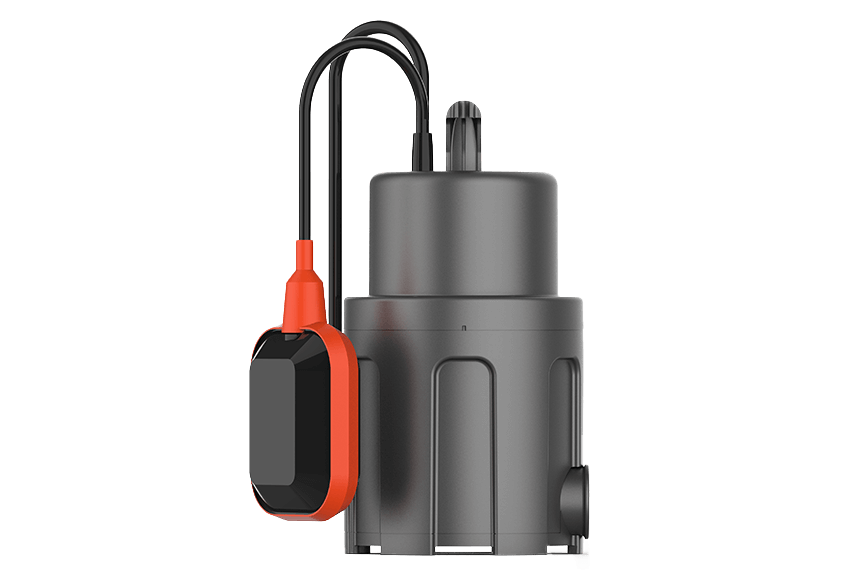

Peripheral Pump
STK
Submersible peripheral pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
2.2 m³/hMax. flow
35 mMax. head
0.37 kWPower
Applications and features
3.5 mMax. immersion depth
F / IPX8Insulation / Enclosure

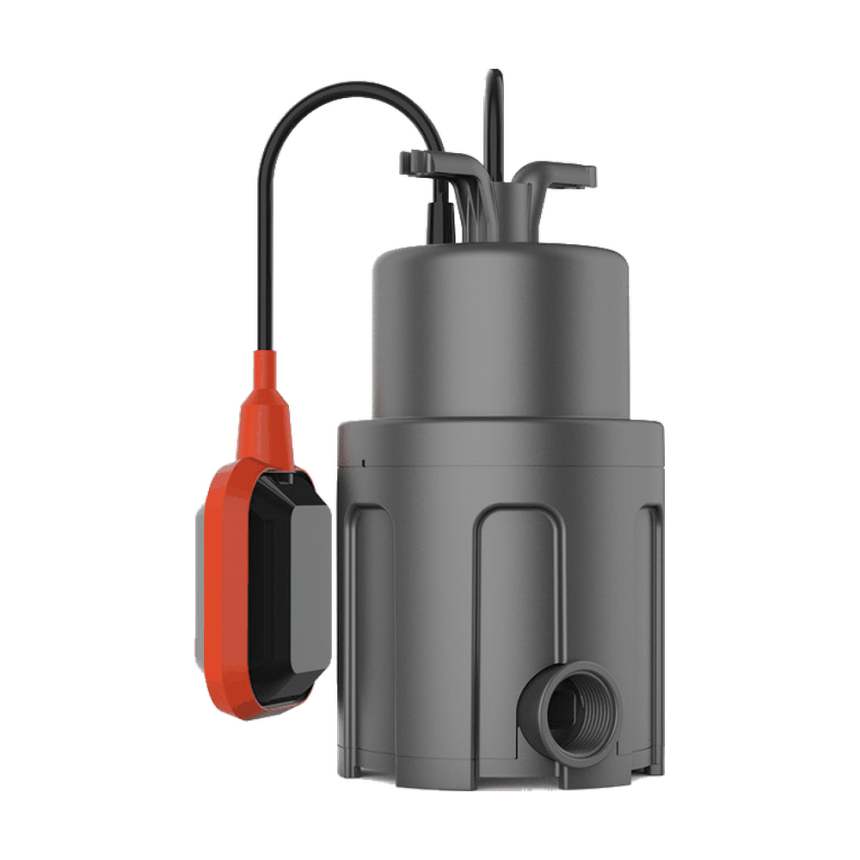

Product identification
Pump
- Low noise (55dB) and Less vibration
- Small and exquisite, easy to install and carry
- Auto-Start/Stop (with float switch type)
- Engineering plastic material have no pollution to water
Motor
- Insulation class: F
- Enclosures class: IPX8
Identification code
STK50(F)
- STK
- Submersible Pump Series
- 50
- Rated Output Power
- (F)
- Optional Float Switch
Swipe horizontally to compare model, phase, power and all flow/head values.

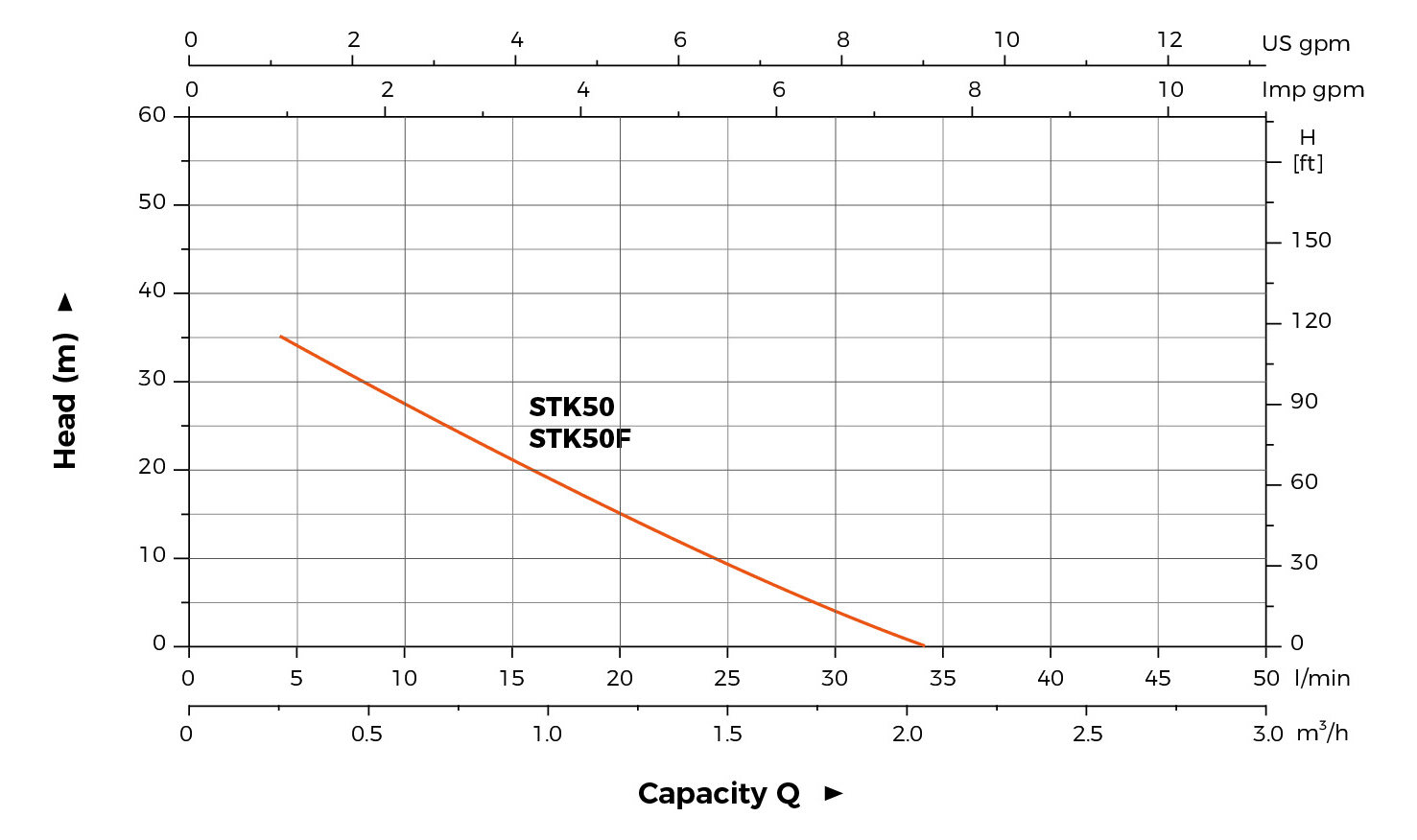

Hydraulic performance curves

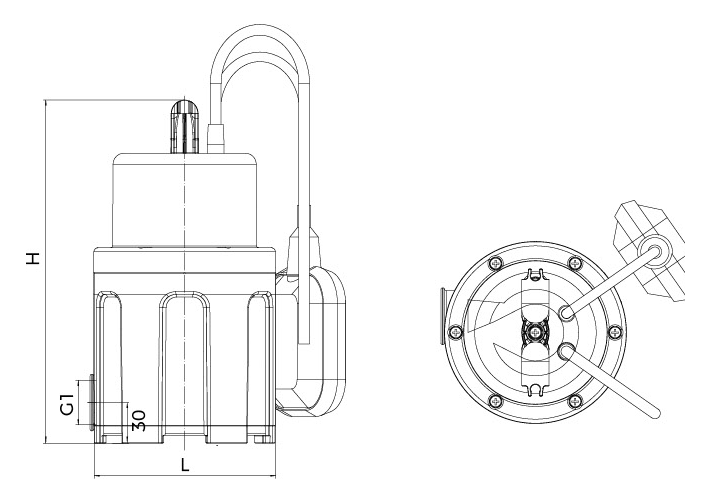

Dimensions and connections

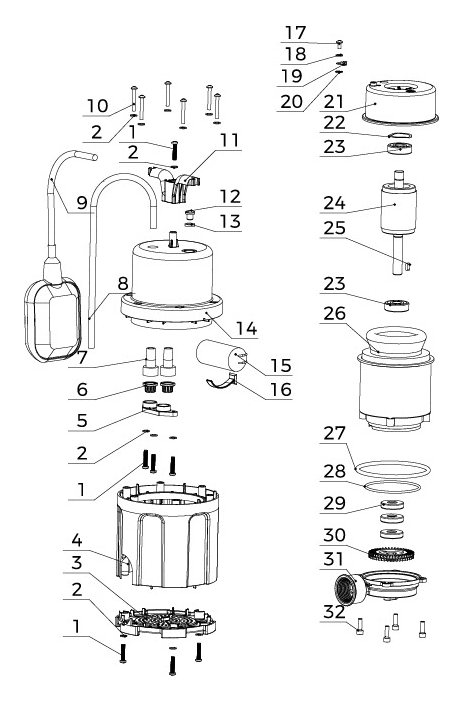

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Screw | - |
| 2 | Washer | - |
| 3 | Pedestal | PP |
| 4 | Plastic support | PP |
| 5 | Cable clamp | PA |
| 6 | Cable plate | PA |
| 7 | Cable jacket | EPDM |
| 8 | Cable | - |
| 9 | Float switch | - |
| 10 | Screw | - |
| 11 | Handle | PP |
| 12 | Screw | - |
| 13 | O-ring | - |
| 14 | Top cap | PP |
| 15 | Capacitor | - |
| 16 | Capacitor clamp | PC/ABC |
| 17 | Screw M4×8 | - |
| 18 | Spring washer | - |
| 19 | Cold compacting | - |
| 20 | Serrated lock washer | - |
| 21 | Bearing cover | ADC12 |
| 22 | Spring washer | - |
| 23 | Bearing | - |
| 24 | Rotor | - |
| 25 | Shaft key | - |
| 26 | Winding | - |
| 27 | O-ring | - |
| 28 | O-ring | - |
| 29 | Framework oil seal | - |
| 30 | Impeller | HPb59-1 |
| 31 | Pump body subassembly | ADC12 |
| 32 | Hexagon socket cap screws | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
