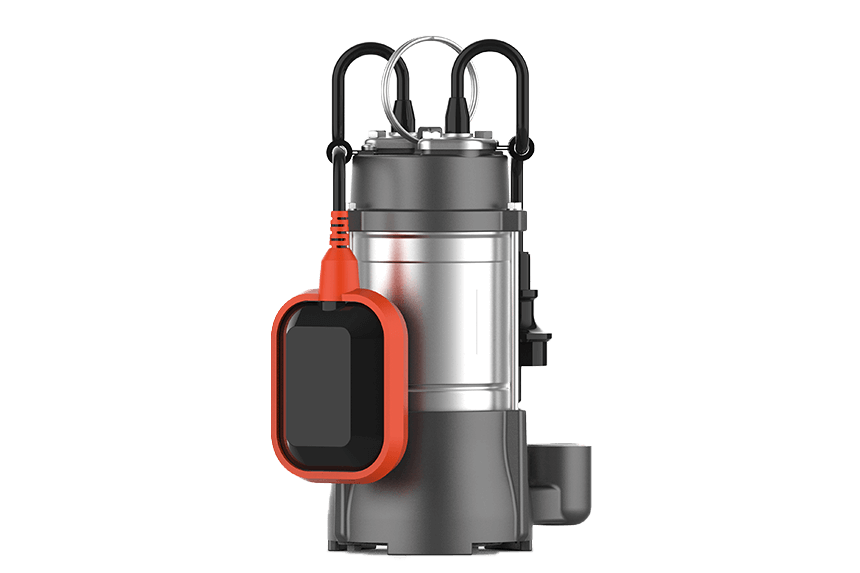

Peripheral Pump
SPm
Submersible peripheral pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
2 m³/hMax. flow
40 mMax. head
0.37 kWPower
Applications and features
+40°CMax. fluid temperature
5 mMax. immersion depth
6.5 - 8.5Liquid PH value
0.1%Max. sand content
0.2 mmMax. solid diameter
Product identification
Pump
- Special anti-rust treatment for cast iron pump body
Motor
- Motor with copper winding
- Insulation class: F
- Enclosures class: IPX8
Identification code
SPm37A
- S
- Submersible Type
- P
- Peripheral Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 37
- Power (X10 W)
- A
- Automatic Operation With Float Switch
Swipe horizontally to compare model, phase, power and all flow/head values.

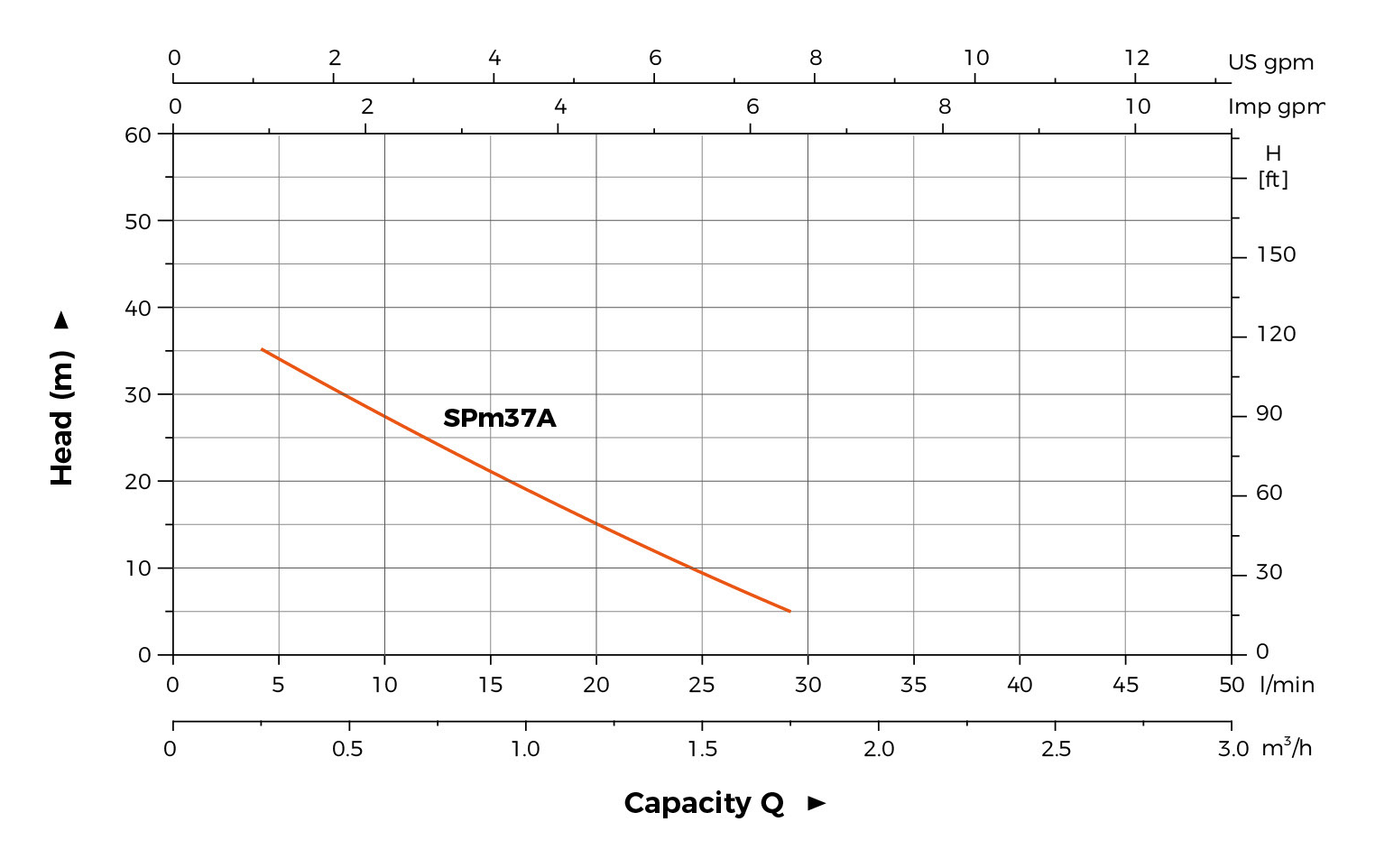

Hydraulic performance curves

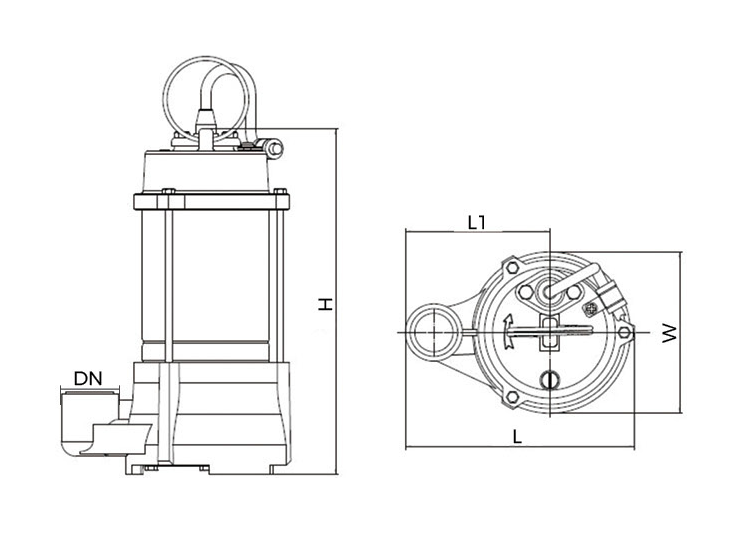

Dimensions and connections

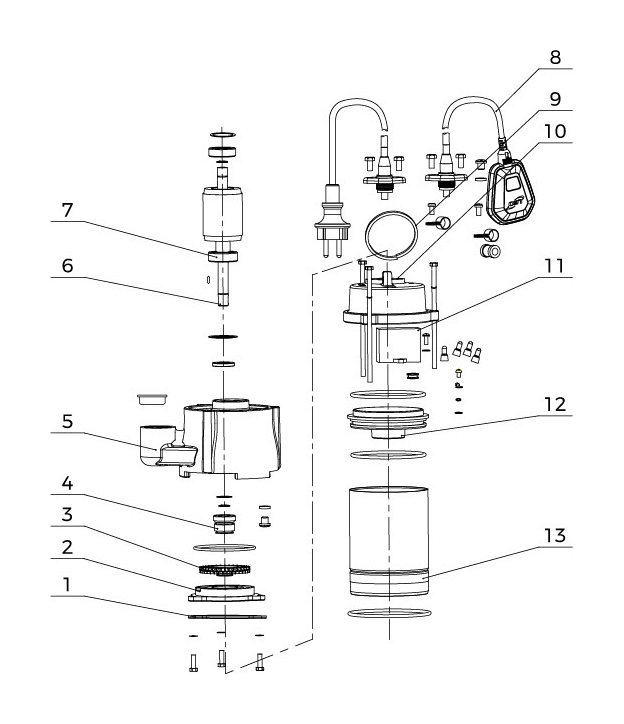

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Filter | - |
| 2 | Casing cover | HT200 |
| 3 | Impeller | HPB59-1 |
| 4 | Mechanical seal | - |
| 5 | Pump body | HT200 |
| 6 | Rotor | - |
| 7 | Ball bearing | - |
| 8 | Float switch | - |
| 9 | Handle ring | - |
| 10 | Top cover | HT200 |
| 11 | Capacitance | - |
| 12 | Upper bearing shuck | HT200 |
| 13 | Stator | - |

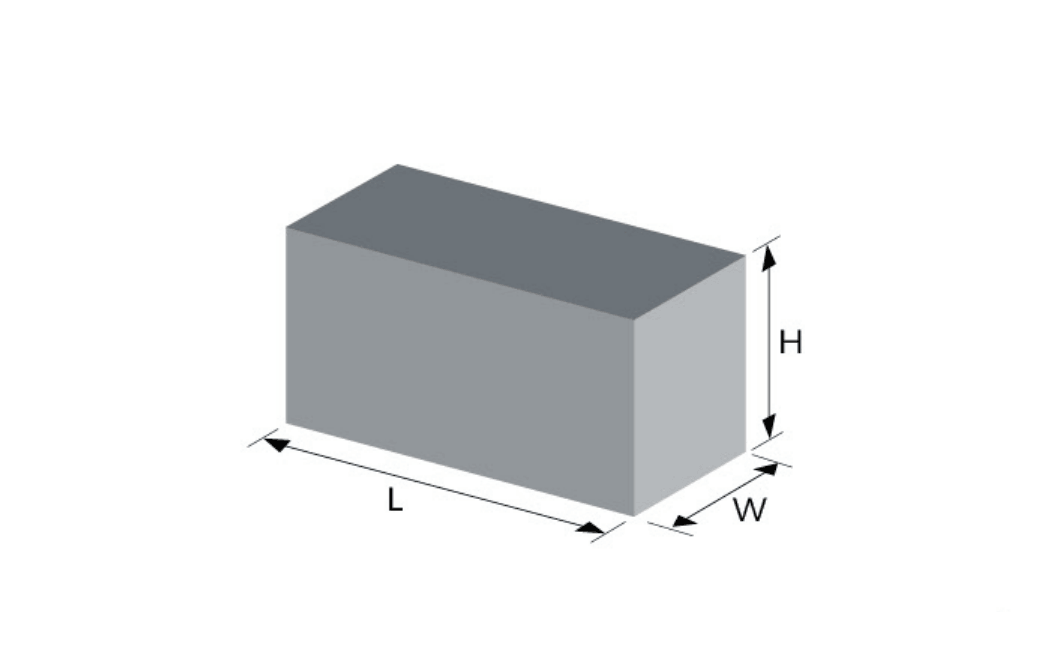

Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
