- Sewage and sewage treatment applications in buildings, hospitals, residential quarters, municipal engineering, road traffic and construction, and factories
- Discharging wastewater, rainwater, and sewage containing solid particles

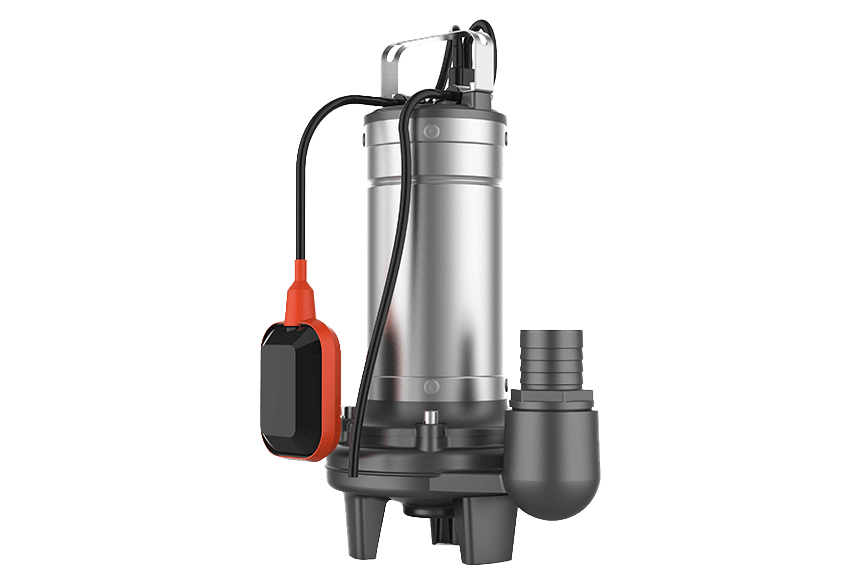

Submersible Sewage Pump
LSW
Sewage submersible pumps are designed to discharge wastewater, rainwater, and sewage containing solid particles.
34.5 m³/hMax. flow
23 mMax. head
0.18-2.2 kWPower range
Applications and features
40°CMax. liquid temperature
F / IPX8Insulation / Enclosure
5 mMax. immerse depth
Product identification
Pump
- Stainless steel shell
- Cast Iron Pump body with special anti-rust treatment
- Fixed cable with unique design
- AISI 304 shaft
Motor
- Motor with copper winding
- Built-in thermal protector for single phase motor
Identification code
LSWm75A
- LSW
- Sewage Submersible Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 75
- Power (HP × 100)
- A
- Automatic Operation with Float Switch (Without a float switch for three-phase models)
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | HT 200 |
| 2 | Exhaust valve | HP59-1 |
| 3 | Impeller | HT 200 |
| 4 | Oil seal | - |
| 5 | Oil chamber cover | HT 200 |
| 6 | Connector | ABS |
| 7 | Mechanical seal | SiC/Carbon +Carbon/Ceramic |
| 8 | Oil chamber | HT 200 |
| 9 | Bearing | - |
| 10 | Rotor | 45# + AISI 304 |
| 11 | Stator | - |
| 12 | Upper cover | ADC 12 |
| 13 | Capacitor clamp | Q235 |
| 14 | Capacitor | - |
| 15 | Top cover | HT 200 |
| 16 | Cable sheathing | Neoprene |
| 17 | Cable cover | AISI 304 |
| 18 | Handle | AISI 304 |
| 19 | Cable line | - |
| 20 | Float switch | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
