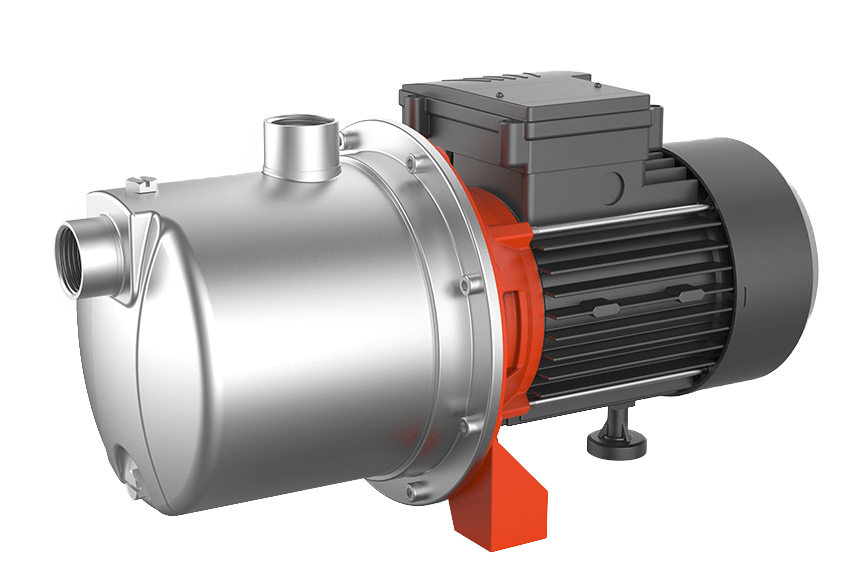

Centrifugal Pump
XCm
Stainless steel multistage centrifugal pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
5 m³/hMax. flow
56.5 mMax. head
0.37-0.9 kWPower range
Applications and features
+60°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- Stainless steel pump body
- AISI 304 shaft
- Low noise
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector
Identification code
4XCm120C
- 4
- Impeller Stage
- XC
- Centrifugal Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 120
- Impeller Nominal Diameter (mm)
- C
- Features
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | 06Cr19Ni10 |
| 2 | Pump cover | PPO |
| 3 | Impeller | PPO |
| 4 | Water outlet cover | PPO |
| 5 | Diffuser | PPO |
| 6 | Mechanical seal | - |
| 7 | Support cover | 06Cr19Ni10 |
| 8 | Support | ZL102 |
| 9 | Fan cover | 08F |
| 10 | Fan | PP |
| 11 | End plate | ADC12 |
| 12 | Water proof switch | - |
| 13 | Nut | - |
| 14 | Capacitor | - |
| 15 | Clamp | PC+ABS |
| 16 | Terminal cover | ABS |
| 17 | Wiring base assembly | DMC |
| 18 | Cover box | ABS |
| 19 | Stator | - |
| 20 | Rotor | - |
| 21 | Bearing | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
