- Lifting water from the well
- Sprinkling irrigation in garden
- Pressure boosting of running water
- Supporting equipment

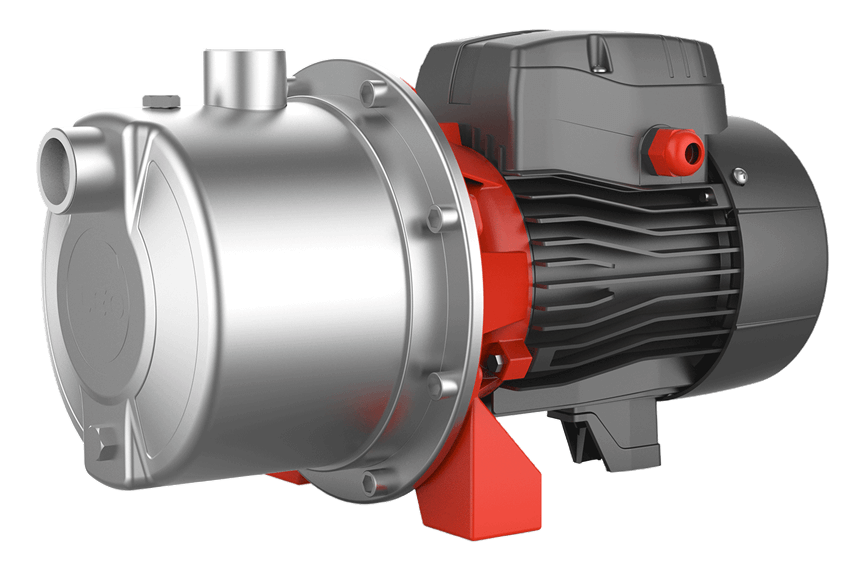

Jet Pump
AJm-S
Stainless steel jet pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
3.6 m³/hMax. flow
48 mMax. head
0.3-0.9 kWPower range
Applications and features
+60°CMax. liquid temperature
+9 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosures
Product identification
Pump
- Stainless steel pump body
- Support under special anti-rust treatment
- Stainless steel impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
Identification code
AJm30S
- A
- LEO Product Style
- J
- Jet Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 30
- Power (x10W)
- S
- Stainless Steel Pump Body
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Flat washer | 06Cr19Ni10 |
| 2 | Affusion plug screw | HPb59-1 |
| 3 | Pump body | 06Cr19Ni10 |
| 4 | Internal channel | PPO-GF30 |
| 5 | Water outlet cover | PPO-GF30 |
| 6 | Impeller | 06Cr19Ni10 |
| 7 | O-ring | NBR |
| 8 | Mechanical seal | - |
| 9 | Bracket cover | 06Cr19Ni10 |
| 10 | Bracket | ADC12 |
| 11 | Bearing | - |
| 12 | Rotor | - |
| 13 | Stator | - |
| 14 | End plate | ADC12 |
| 15 | Fan | PP-GF15 |
| 16 | Fan cover | PP-GF10 |
| 17 | Capacitor | - |
| 18 | Cover box | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
