- Pressurization, household water supply and automatic watering
- Transfer clean water or other liquids similar to water in physical and chemical properties

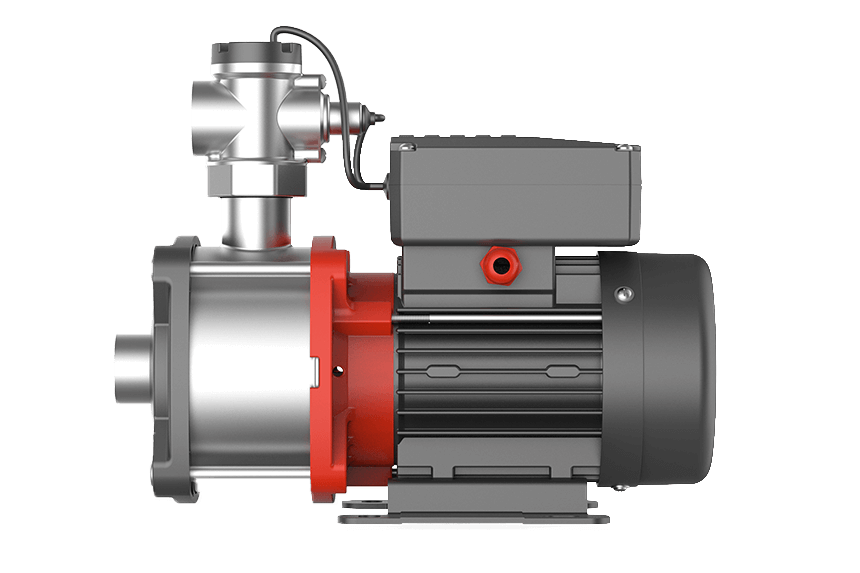

Horizontal Multistage Pump
EMHm-SE
Intelligent stainless steel multistage centrifugal pump controlled by a PLC microcomputer chip.
6.5 m³/hMax. flow
57.5 mMax. head
0.25-0.75 kWPower range
Applications and features
4°C - 60°CLiquid temperature
10 barMax. working pressure
+50°CMax. ambient temperature
F / IP55Insulation / Enclosure
Product identification
Pump
- Delay-start protection
- Automatic start and stop
- No-water protection
- When the conveyed medium is denser than clean water, a high-power motor is required
Motor
- Motor with copper winding
- Single phase 180-220V/50Hz
- Built-in thermal protector for single phase motor
Identification code
EMHm22SE
- EMH
- Stainless Steel Horizontal Multistage Pump
- m
- Single Phase Motor
- 2
- Rated Flow (m³/h)
- 2
- Impeller Stage
- SE
- Intelligent Type
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump cover | ZL102 |
| 2 | Pump body | AISI 304 |
| 3 | Diffuser 1 | AISI 304 |
| 4 | Impeller | AISI 304 |
| 5 | Diffuser 2 | AISI 304 |
| 6 | Diffuser 3 | AISI 304 |
| 7 | Machinery Seal | - |
| 8 | Bracket cover | AISI 304 |
| 9 | Base | Q235 |
| 10 | Pressure sensor | - |
| 11 | Five-way | - |
| 12 | Flow Sensor | - |
| 13 | Bracket | ZL 102 |
| 14 | Rotor | - |
| 15 | Stator | - |
| 16 | Terminal box | - |
| 17 | Cover box | Plastic |
| 18 | Rear cover | ZL 102 |
| 19 | Fan | Plastic |
| 20 | Fan cover | Plastic |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
