- Household water supply and equipment support
- Pipeline pressurization
- Garden and vegetable greenhouse watering
- Fish farming and poultry raising
- Industrial and mining water supply and drainage
- Water supply and drainage of enterprises and high-rise buildings
- Central air-conditioning and centralized heating circulation systems

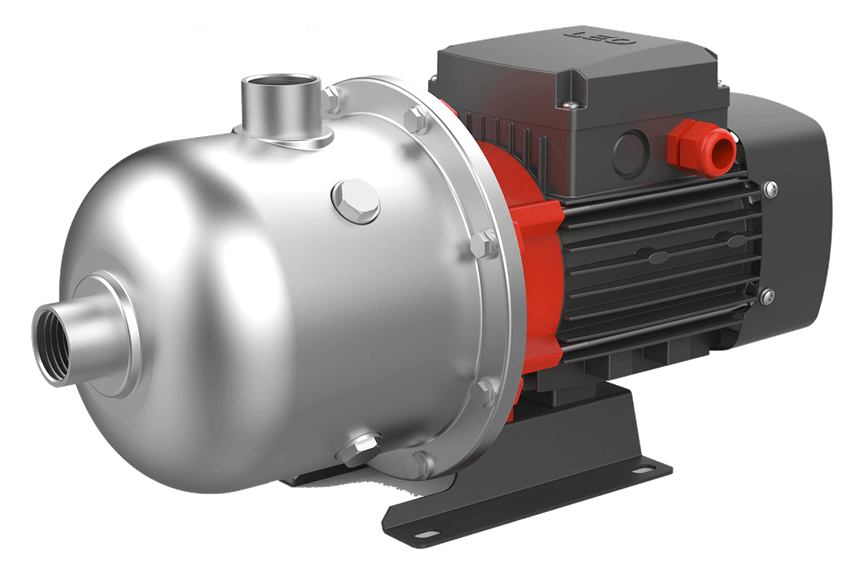

Horizontal Multistage Pump
EDH
Stainless steel horizontal multistage pump for water supply, pressurization and circulation.
31 m³/hMax. flow
60.5 mMax. head
0.37-4 kWPower range
Applications and features
+85°CMax. liquid temperature
10 barMax. operating pressure
+50°CMax. ambient temperature
Limited by max. operating pressureMax. inlet pressure
8 mMax. suction
4-10Liquid pH value
up to 1000 mAltitude
F / IP55Insulation / Enclosure
Product identification
Pump
- AISI 304 shaft
Motor
- IE2 motor (IE3 motor available on request)
- Motor with copper winding
- Built-in thermal protector for single phase motor
Identification code
EDHm230
- EDH
- Stainless Steel Horizontal Multistage Pump
- m
- Single Phase
- 2
- Rated Flow (m³/h)
- 30
- Impeller Stage x10
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | AISI 304 |
| 2 | Support | ZL 102 |
| 3 | Bottom plate | Q235 |
| 4 | Stator | - |
| 5 | Rotor | - |
| 6 | Bearing | - |
| 7 | Rear cover | ZL 102 |
| 8 | Fan | PP |
| 9 | Fan cover | 08F |
| 10 | Bracket cover | AISI 304 |
| 11 | Mechanical seal | Sic/Carbon |
| 12 | Positioning sleeve | AISI 304 |
| 13 | Diffuser 3 | AISI 304 |
| 14 | Diffuser 2 | AISI 304 |
| 15 | Sleeve | AISI 304 |
| 16 | Impeller | AISI 304 |
| 17 | Diffuser 1 | AISI 304 |
| 18 | Pressure plate | AISI 304 |
| 19 | Spacer bush | AISI 304 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
