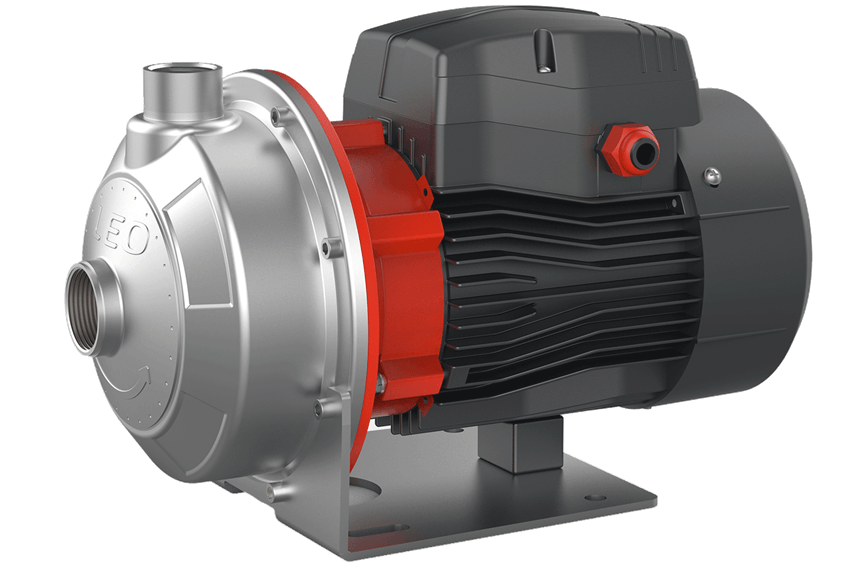

Centrifugal Pump
AMS
Stainless steel centrifugal pumps for household water supply, pressure boosting, irrigation, farming, and water circulation systems.
31 m³/hMax. flow
30.4 mMax. head
0.37-2.2 kWPower range

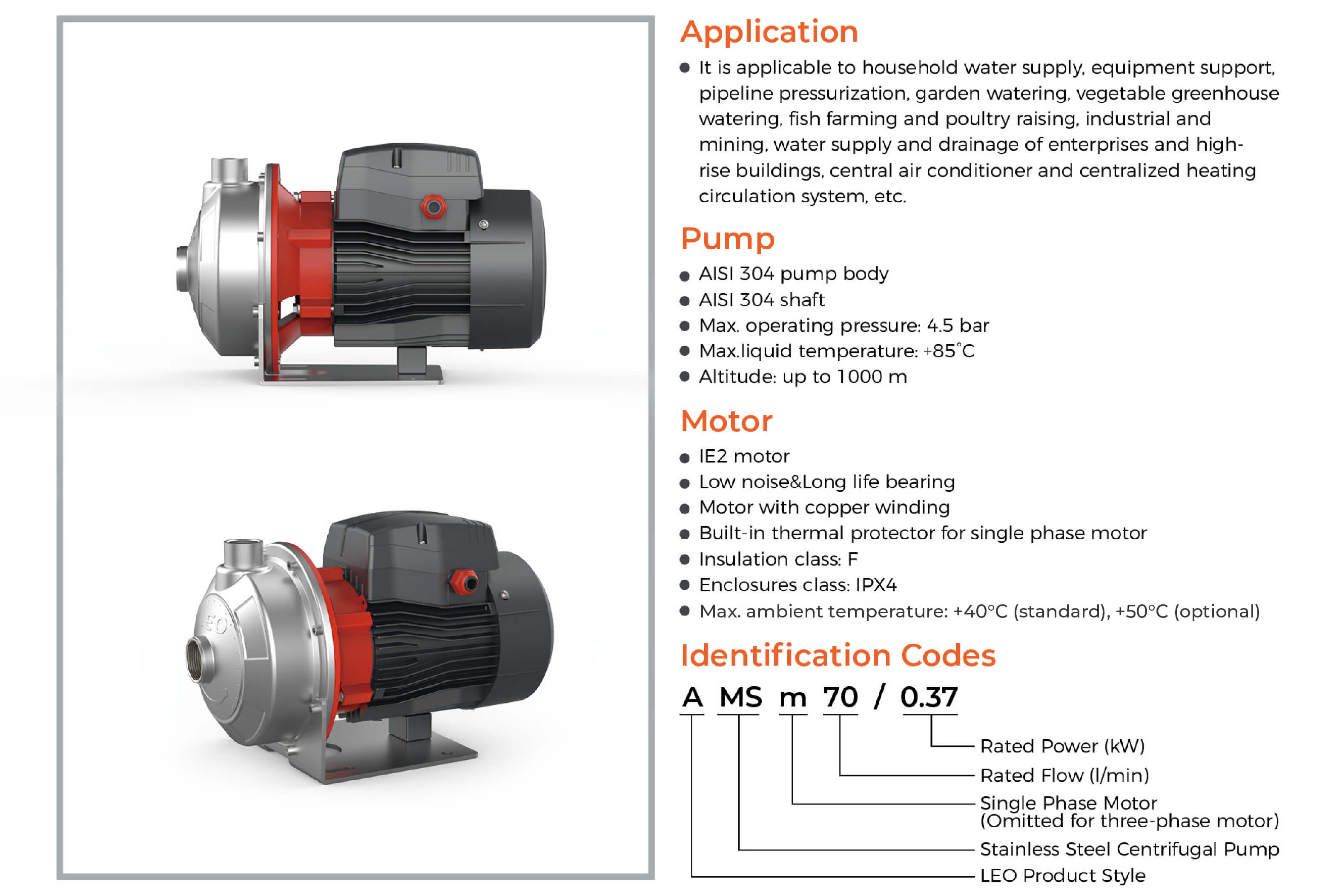

Applications and features
+85°CMax. liquid temperature
4.5 barMax. operating pressure
+40°CMax. ambient temperature
up to 1000 mAltitude
F / IPX4Insulation / Enclosures
Product identification
Pump
- AISI 304 pump body
- AISI 304 shaft
Motor
- IE2 motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor

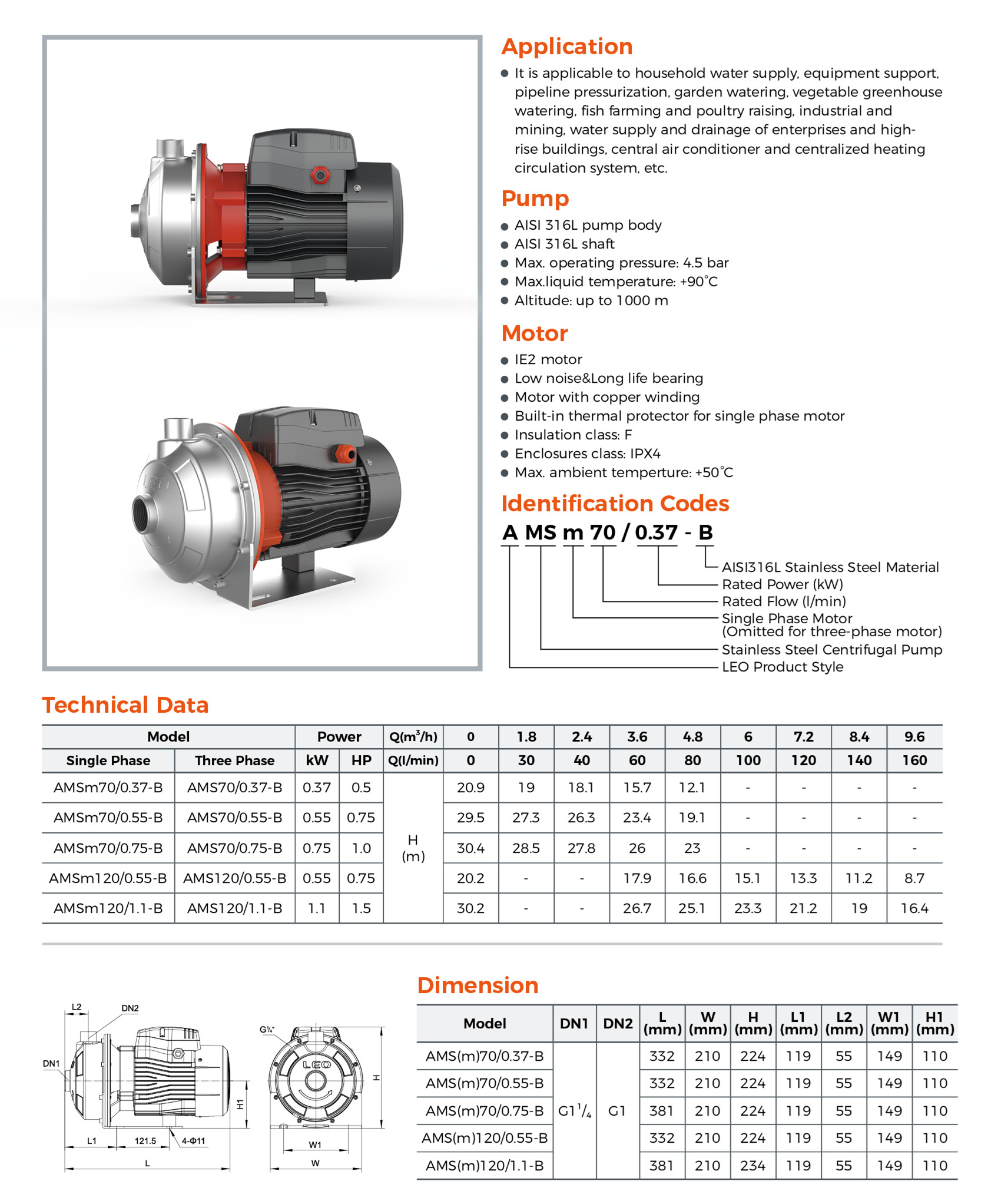

Identification code
AMSm700.37
- A
- LEO Product Style
- MS
- Stainless Steel Centrifugal Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 70
- Rated Flow (l/min)
- 0.37
- Rated Power (kW)
Swipe horizontally to compare model, phase, power and all flow/head values.

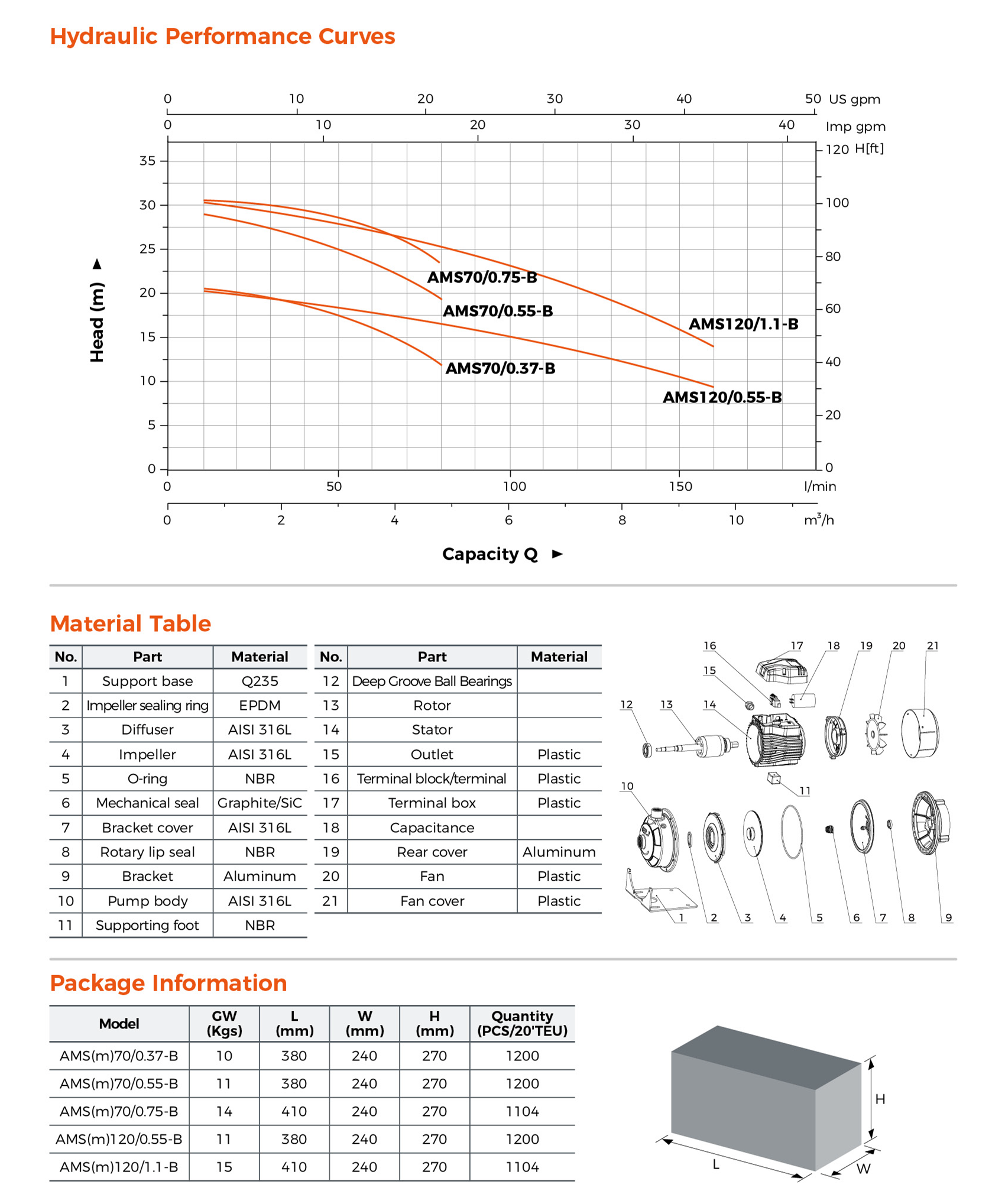

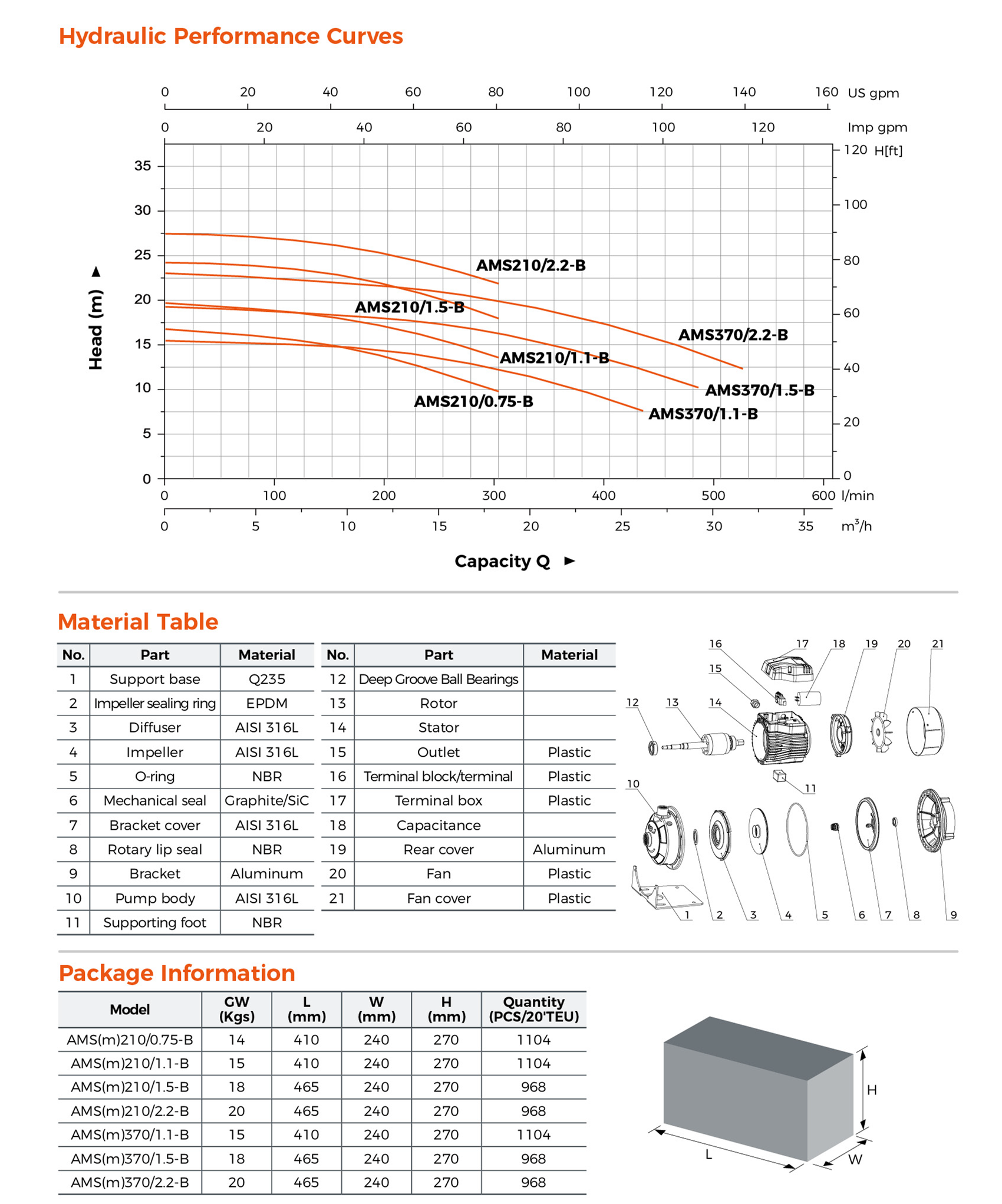

Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Support base | Q235 |
| 2 | Impeller sealing ring | EPDM |
| 3 | Diffuser | AISI304 |
| 4 | Impeller | AISI304 |
| 5 | O-ring | NBR |
| 6 | Mechanical seal | Graphite/SiC |
| 7 | Bracket cover | AISI304 |
| 8 | Rotary lip seal | - |
| 9 | Bracket | Aluminum |
| 10 | Pump body | AISI304 |
| 11 | Supporting foot | - |
| 12 | Deep Groove Ball Bearings | - |
| 13 | Rotor | - |
| 14 | Stator | - |
| 15 | Outlet | Plastic |
| 16 | Terminal block/terminal | Plastic |
| 17 | Terminal box | Plastic |
| 18 | Capacitance | - |
| 19 | Rear cover | Aluminum |
| 20 | Fan | Plastic |
| 21 | Fan cover | Plastic |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
