Centrifugal Pump
XCm

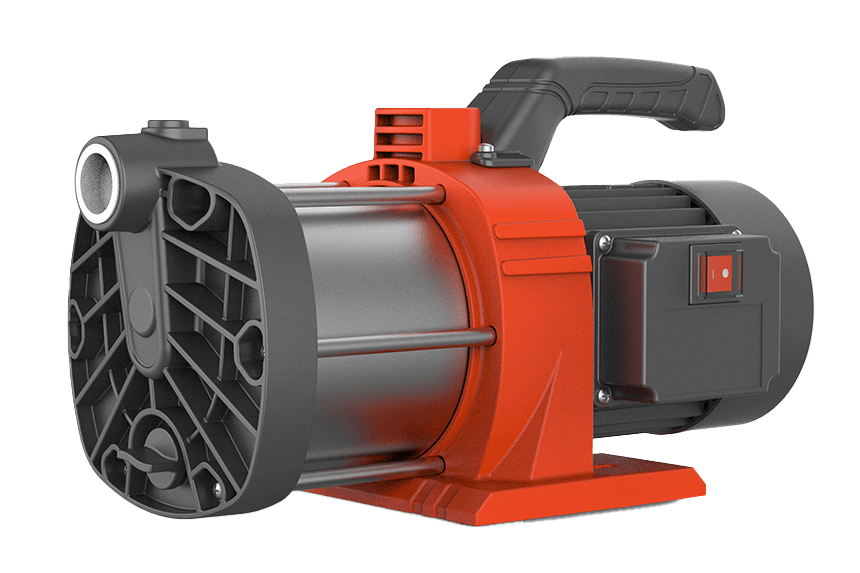

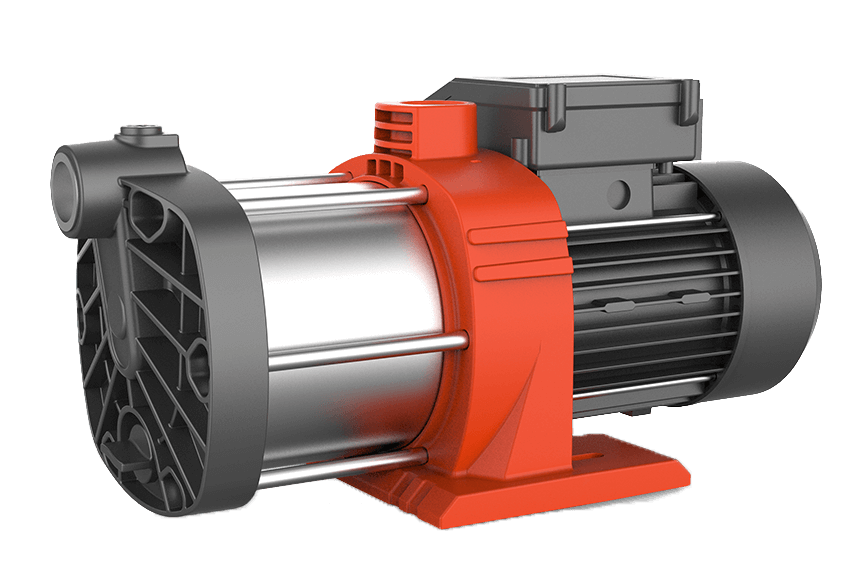

Self-Priming stainless steel multistage centrifugal pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
5.4 m³/hMax. flow
55 mMax. head
0.9-1.3 kWPower range
Applications and features
+35°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- Pump with self-priming design
- Reliable sealing system: mechanical seal+lip seal
- Horizontal shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Motor with thermal protector
- IE 2 motor (Three phase, power>0.9KW)
Identification code
3XCm129PS(E)(-2)
- 3
- Impeller Stage
- X
- LEO Product Style
- C
- Centrifugal Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 129
- Product Characteristics
- PS
- Stainless Steel Pump Barrel, Plastic Pump Body and Bracket
- (E)
- Electronic Switch
- (-2)
- With handle
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | PP-GF30 |
| 2 | Pump barrel | 304 |
| 3 | Seal washer | NBR |
| 4 | Return valve | PPO-GF30 |
| 5 | O-ring | NBR |
| 6 | Spring | 304 |
| 7 | O-ring | NBR |
| 8 | Return cover | PPO-GF30 |
| 9 | Pump cover | PPO-GF30 |
| 10 | Impeller | PPO-GF30 |
| 11 | Drain cover | PPO-GF30 |
| 12 | Diffuser | PPO-GF30 |
| 13 | Flat washer | 304 |
| 14 | Mechanical seal | - |
| 15 | Support | - |
| 16 | Rubber brace | NBR |
| 17 | Fan cover | 08F |
| 18 | Elastic retaining ring for shaft | 65Mn |
| 19 | Fan | PP-GF15 |
| 20 | Rear cover | ZL102 |
| 21 | Waveform spring | 202 |
| 22 | Cover box nut | PA6-GF25 |
| 23 | Cover box | ABS |
| 24 | Capacitor | - |
| 25 | Cover box sealing ring | NBR |
| 26 | Capacitor box | ABS |
| 27 | Stator | - |
| 28 | Rotor | - |
| 29 | Bearing | - |
| 30 | Adjusting gasket | ST12 Galvanized |
| 31 | Water proof gland | - |
| 32 | Front end cover | ZL102 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
