Centrifugal Pump
ACSm

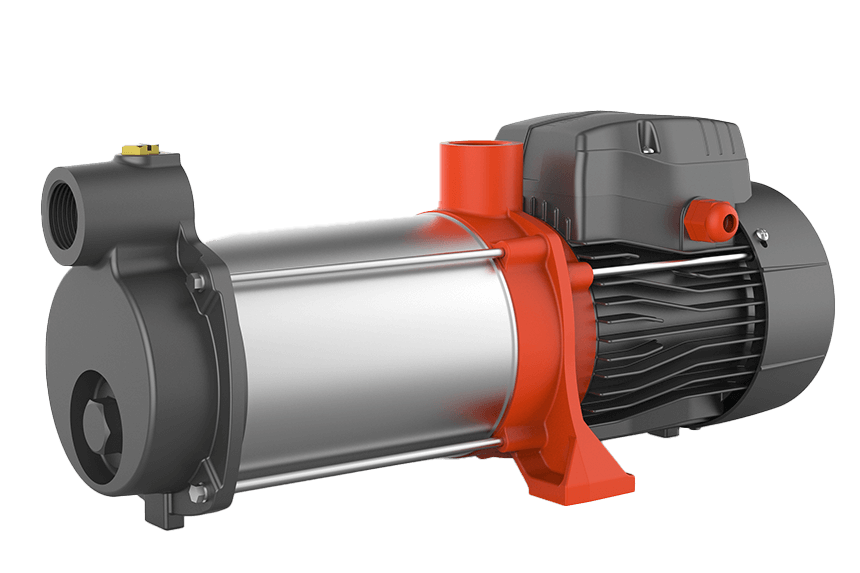

Self-Priming stainless steel multistage centrifugal pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
6 m³/hMax. flow
55 mMax. head
0.6-0.9 kWPower range
Applications and features
+60°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- Pump with self-priming design
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- IE 2 motor (Three phase, power ≥ 0.75kW)
Identification code
3ACSm100S
- 3
- Impeller Stage
- A
- LEO Product Style
- CS
- Self-priming Centrifugal Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 100
- Impeller Nominal Diameter (mm)
- S
- Stainless Steel Barrel
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body plug | PPO-GF30 |
| 2 | Pump body | HT200 |
| 3 | Return valve | PPO-GF30 |
| 4 | Pump cover | PPO-GF30 |
| 5 | Water outlet cover | PPO-GF30 |
| 6 | Impeller | PPO-GF30 |
| 7 | Final diffuser | PPO-GF30 |
| 8 | Pump barrel | AISI304 |
| 9 | Bracket | HT200 |
| 10 | Fan cover | PP |
| 11 | Fan | PP-GF10 |
| 12 | End plate | ADC12 |
| 13 | Cover box | PP-GF20 |
| 14 | Capacitor | - |
| 15 | Wiring base assembly | PC |
| 16 | Stator | - |
| 17 | Rotor | - |
| 18 | Deep groove ball bearing | - |
| 19 | Mechanical seal | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
