- Pumping water from lake, river and well
- Industrial use
- Agricultural irrigation

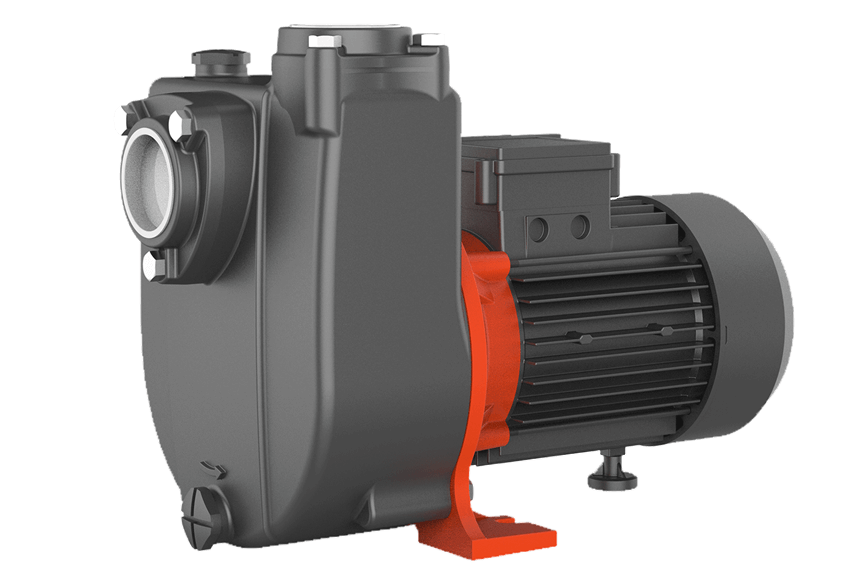

Centrifugal Pump
XHSm
Self-priming centrifugal pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
19.8 m³/hMax. flow
20 mMax. head
1.1-1.5 kWPower range
Applications and features
+60°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- IE 2 motor (Three phase, power ≥ 0.75kW)
Identification code
XHSm1500
- XHS
- Self-priming Centrifugal Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 1500
- Power (HPx1000)
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Flange | HT200 |
| 2 | Pump body | HT200 |
| 3 | Impeller | HT200 |
| 4 | Mechanical seal | |
| 5 | Bracket | HT200 |
| 6 | Deep groove ball bearing | |
| 7 | Rotor | |
| 8 | Fan cover | 08F |
| 9 | Fan | PP-GF15 |
| 10 | End plate | ADC12 |
| 11 | Stator | |
| 12 | Wiring base assembly | PC |
| 13 | Capacitor | |
| 14 | Cover box | ABS |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
