- Water circulation in all kinds of small domestic swimming pools
- Filtering slightly dirty water with solids in suspension

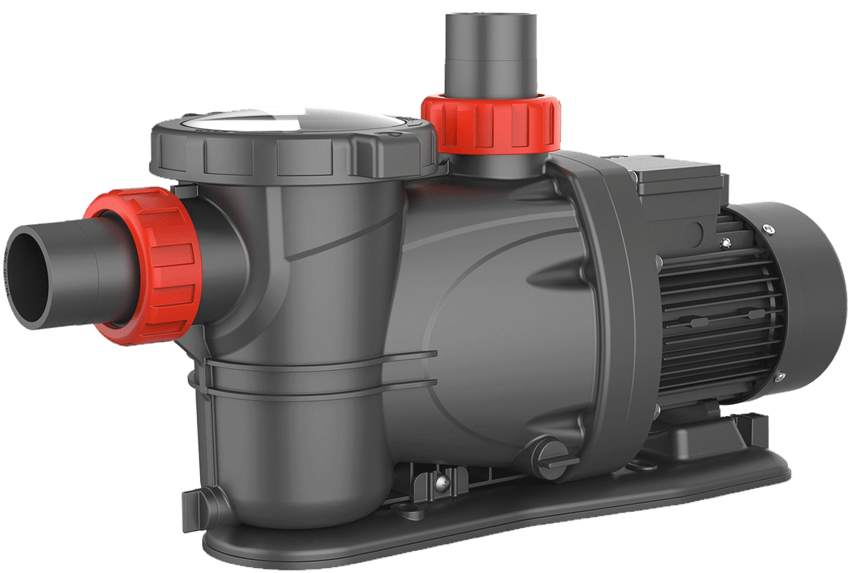

Pool & Bathtub Pump
XKP
Pool pumps designed for water circulation in small domestic swimming pools and filtration of slightly dirty water containing suspended solids.
15 m³/hMax. flow
12.5 mMax. head
0.25-0.85 kWPower range
Applications and features
3.5 mMax. suction
F / IPX5Insulation / Enclosure
5 - 50°CMedium temperature
≤40°CEnvironmental temperature
Product identification
Pump
- Engineering plastic pump body
Motor
- Motor with copper or aluminum winding
- Built-in thermal protector for single phase motor
Identification code
XKP256
- XKP
- Pool Pump
- 25
- Power (x10W)
- 6
- Product Style
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | PP |
| 2 | Guide vane | PPO |
| 3 | Impeller | PPO |
| 4 | Mechanical seal | |
| 5 | Bracket | PP |
| 6 | Front end cover | ADC12 |
| 7 | Fan cover | PP |
| 8 | Fan | PP |
| 9 | End plate | ADC12 |
| 10 | Stator | |
| 11 | Terminal box cover | ABS |
| 12 | Capacitor | |
| 13 | Cover box | ABS |
| 14 | Deep groove ball bearing | |
| 15 | Rotor | |
| 16 | Pump cover nut | ABS |
| 17 | Pump cover | PC |
| 18 | Filter | PP |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
