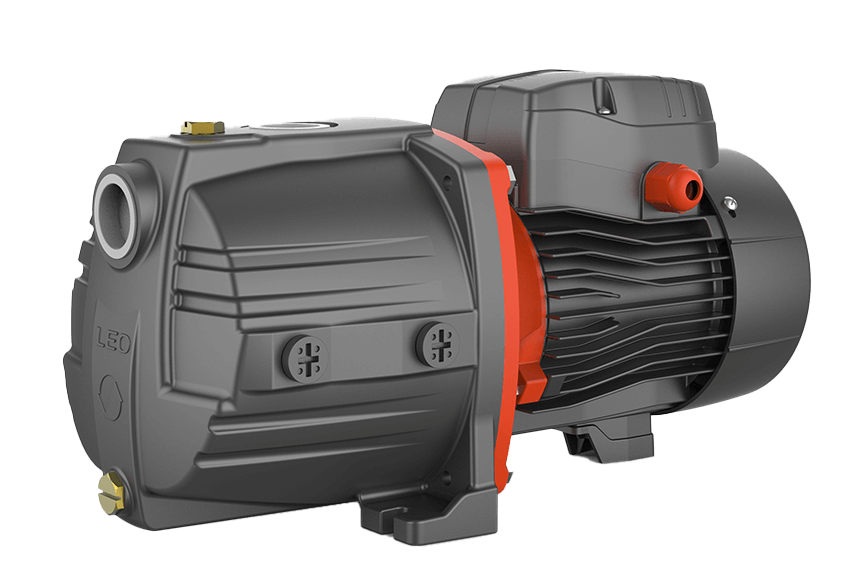

Centrifugal Pump
ACm
Multistage centrifugal pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
5.4 m³/hMax. flow
46.5 mMax. head
0.45-0.75 kWPower range
Applications and features
+60°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- IE 2 motor for 4AC75
Identification code
3ACm45
- 3
- Impeller Stage
- A
- LEO Product Style
- C
- Centrifugal Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 45
- Power (x10W)
Swipe horizontally to compare model, phase, power and all flow/head values.

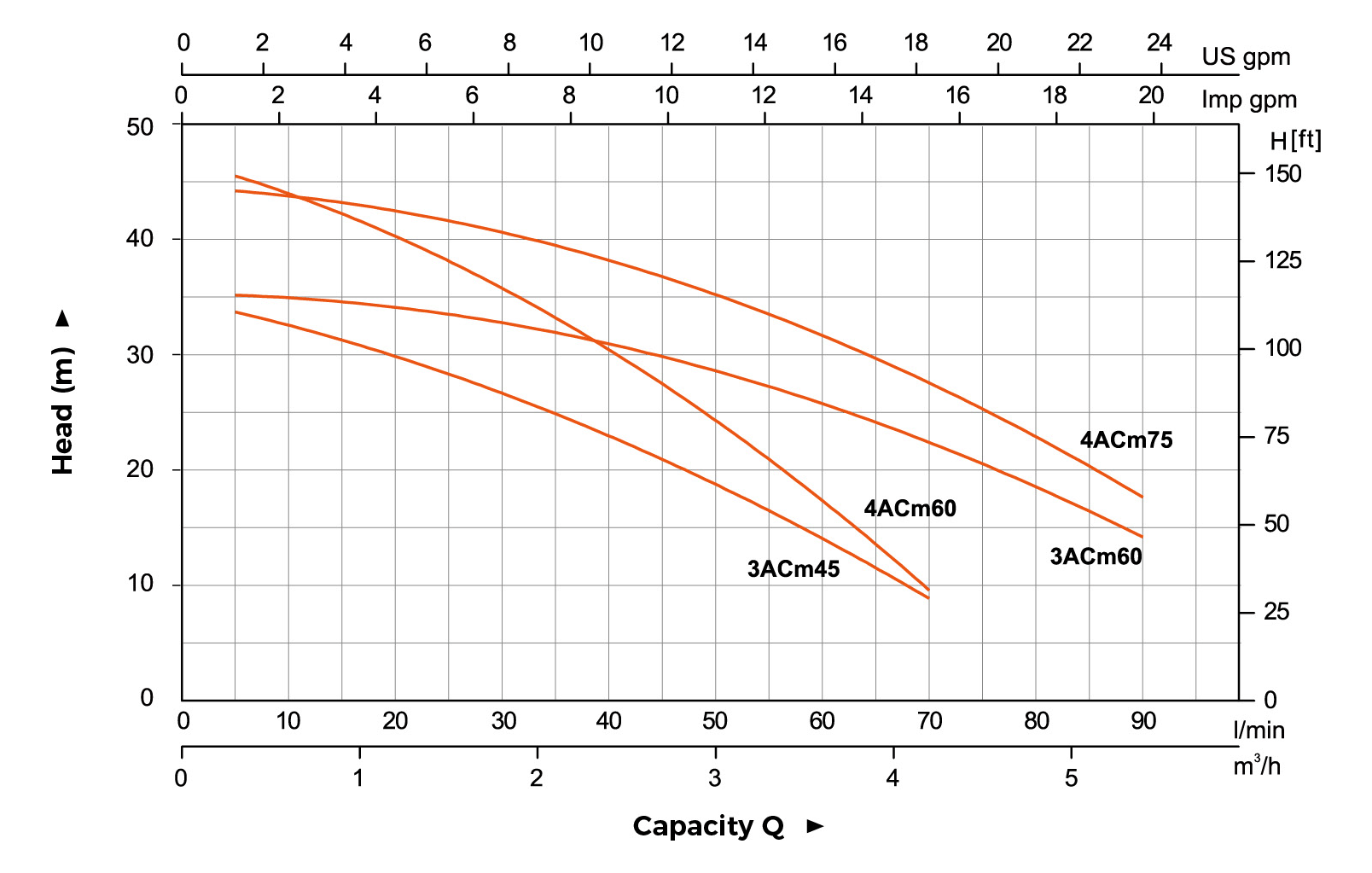

Hydraulic performance curves

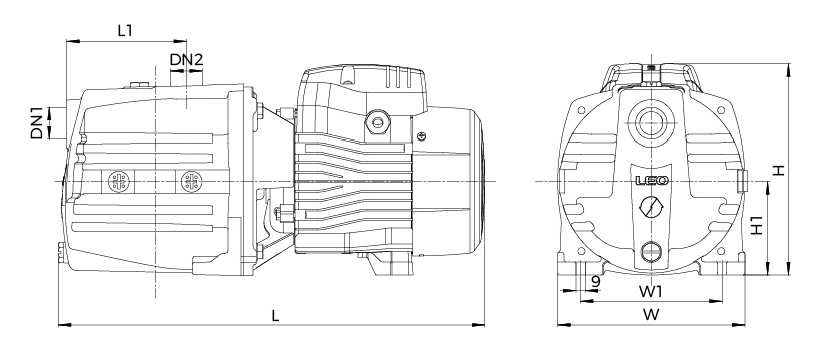

Dimensions and connections

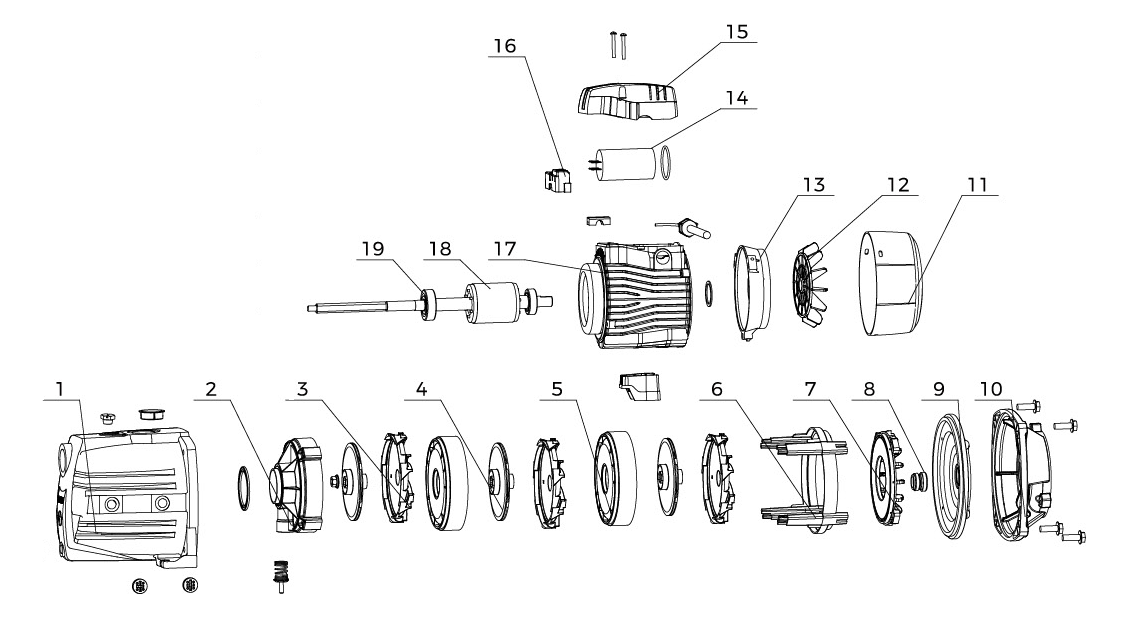

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | HT200 |
| 2 | Reflux cover | PP-GF30 |
| 3 | Guide vane one | PP-GF30 |
| 4 | Impeller | PP-GF30 |
| 5 | Guide vane two | PP-GF30 |
| 6 | Fixed frame | PP-GF30 |
| 7 | Carriage | PP-GF30 |
| 8 | Mechanical seal | - |
| 9 | Bracket cover | HT200 |
| 10 | Bracket | ADC12 |
| 11 | Fan cover | PP |
| 12 | Fan | PP-GF10 |
| 13 | End plate | ADC12 |
| 14 | Capacitor | - |
| 15 | Cover box | PP-GF20 |
| 16 | Wiring base assembly | PC |
| 17 | Stator | - |
| 18 | Rotor | - |
| 19 | Bearing | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
