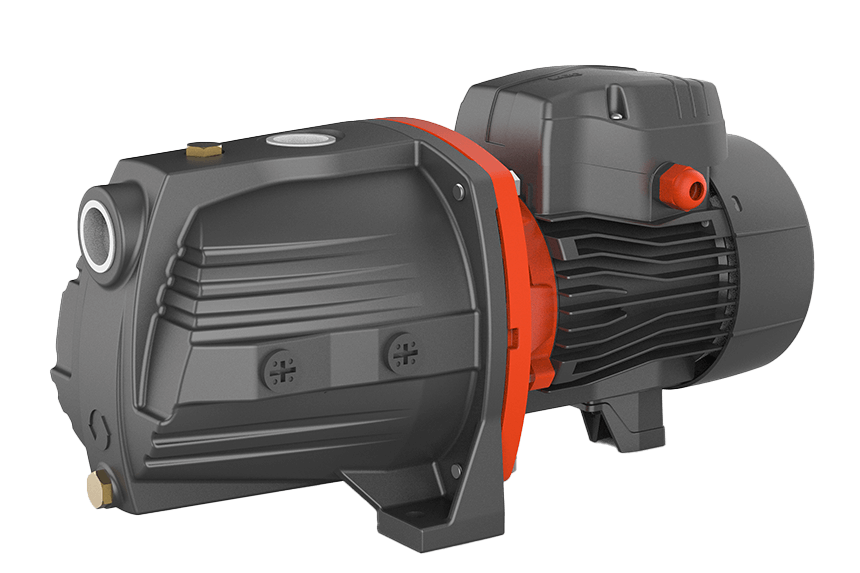

Jet Pump
AJm
Jet pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
3.9 m³/hMax. flow
60 mMax. head
0.3-0.9 kWPower range
Applications and features
+60°CMax. liquid temperature
+9 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosures

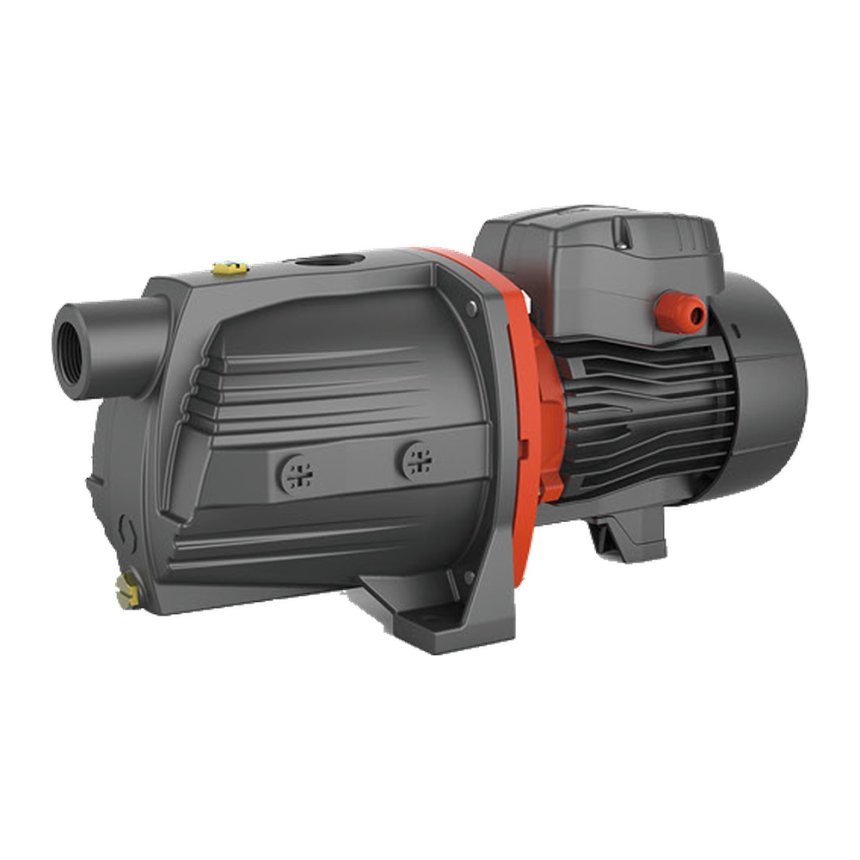

Product identification
Pump
- Built-in check valve
- Cast iron pump body and support under special anti-rust treatment
- Stainless steel impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
Identification code
AJm30H
- A
- LEO Product Style
- J
- Jet Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 30
- Power (x10W)
- H
- High Head
Swipe horizontally to compare model, phase, power and all flow/head values.

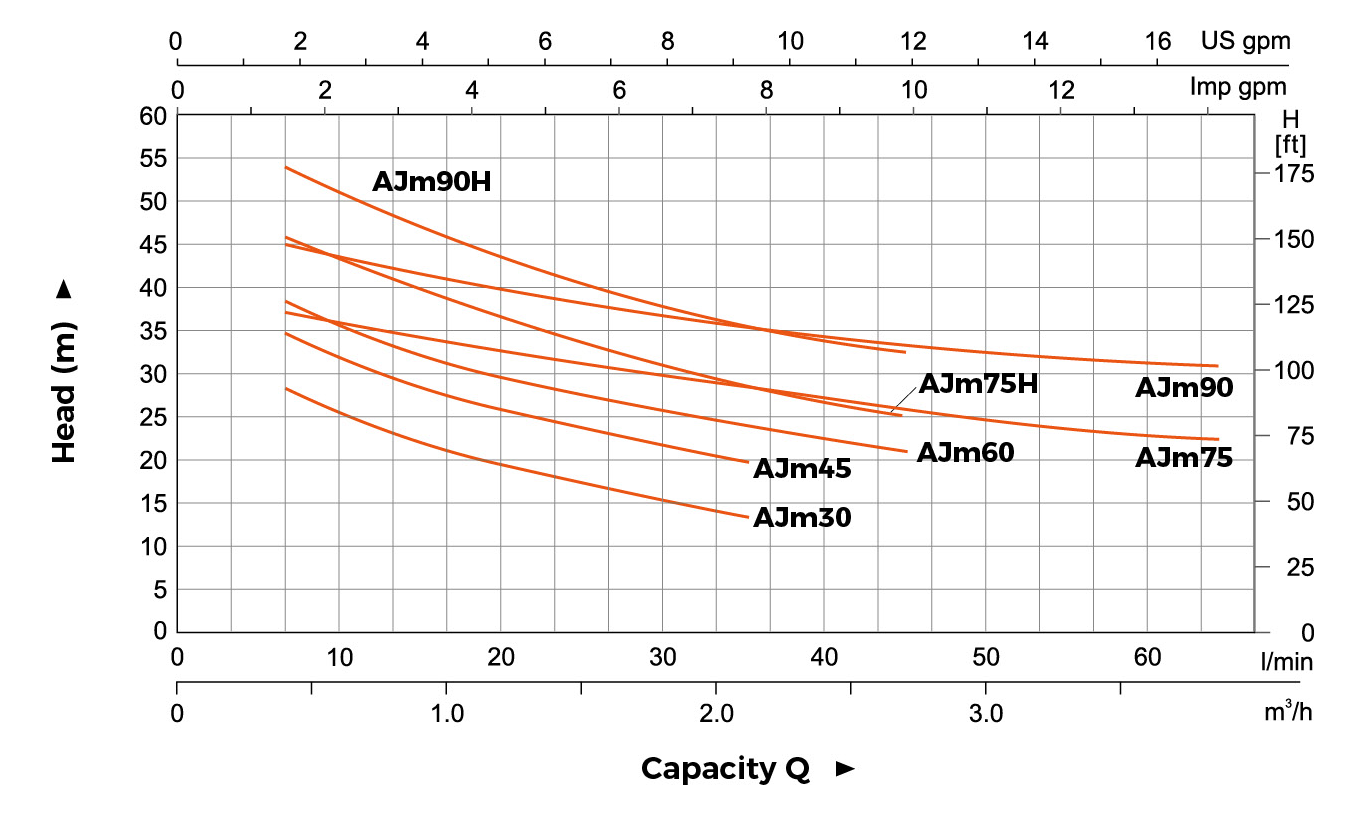

Hydraulic performance curves

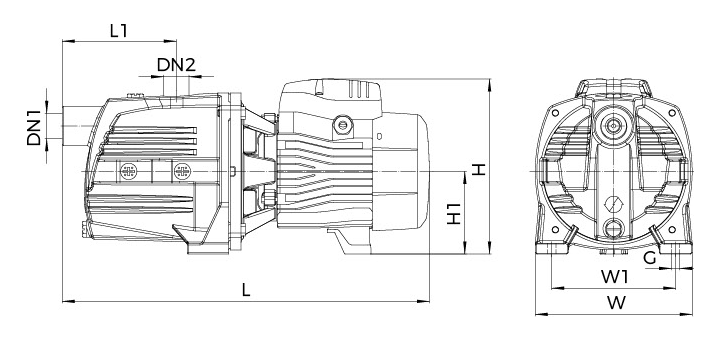

Dimensions and connections

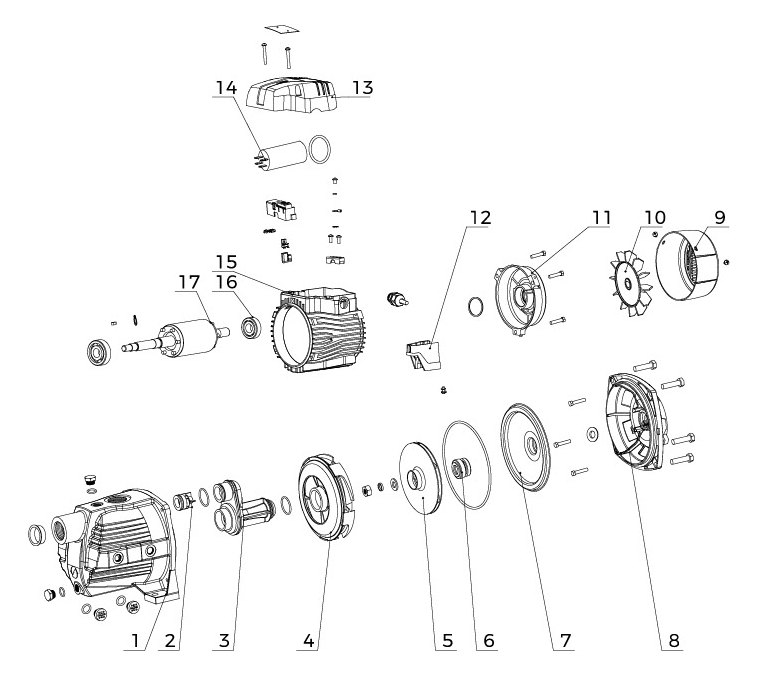

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | HT200 |
| 2 | Non-return valve | - |
| 3 | Runner | PPO |
| 4 | Outlet cover | PPO |
| 5 | Impeller | PPO |
| 6 | Mechanical seal | - |
| 7 | Bracket cover | SS304 |
| 8 | Bracket | ZL102 |
| 9 | Fan cover | PP |
| 10 | Fan | PP |
| 11 | Rear cover | ADC12 |
| 12 | Supporting foot | PA6 |
| 13 | Terminal box | PA6 |
| 14 | Capacitor | - |
| 15 | Stator | - |
| 16 | Bearing | - |
| 17 | Rotor | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
