- Clean water transfer
- Water supply and drainage for factories, mines and municipal facilities
- Field irrigation
- New unique design with ergonomic feature
- Portable and compact pump frame
- High quality engine with excellent performance and long service life
- Impeller designed with high efficient hydraulic system
- Low fuel consumption

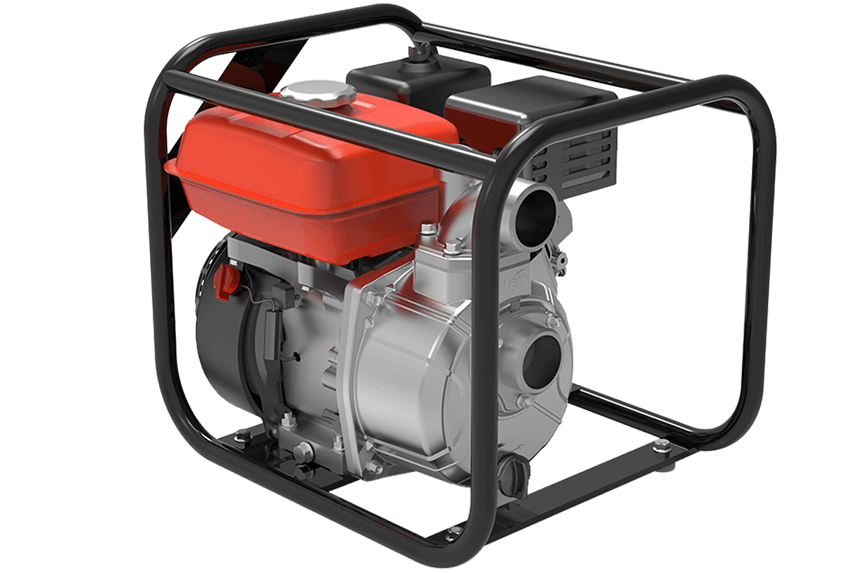

Engine Pump
LGP
Gasoline water pumps for transferring clean water.
15 m³/hMax. flow
35 mMax. head
1.6 HPPower
Applications and features
0°C - 40°CLiquid temperature
8 mMax. suction
Product identification
Pump
- Anti-rust cast iron impeller and diffuser
- Max. Suction: 8 m, Suck 5 m needs 120 s
- Inlet/outlet: 25 mm / 38 mm
Engine
- Single cylinder, 2-stroke, Air-cooled
- Max. power: 1.6 HP
- Rated speed: 7500 rpm
- Mixture ratio of fuel: 1:25 (2-stroke engine oil and 90 octane gasoline or higher)
Identification code
LGP10
- L
- LEO Product Style
- GP
- Gasoline Water Pump
- 10
- Inlet/Outlet Diameter (1")
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Frame | Steel |
| 2 | Throttle trigger | - |
| 3 | Engine | - |
| 4 | Crankshaft | - |
| 5 | Bearing | - |
| 6 | Seat connection | Aluminum |
| 7 | Pump cover | Aluminum |
| 8 | O-ring | NBR |
| 9 | Mechanical seal | Carbon/Ceramic |
| 10 | Impeller | HT200 |
| 11 | Diffuser | HT200 |
| 12 | O-ring | NBR |
| 13 | Plug | PP |
| 14 | Outlet | Aluminum |
| 15 | Seal | NBR |
| 16 | Non-return valve | NBR |
| 17 | Inlet | Aluminum |
| 18 | Pump body | Aluminum |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
