- Water supply and drainage for factories, mines, municipal facilities as well as field irrigation
- Suitable for longer distance and greater height water transfer
- New unique design with ergonomic feature
- Portable and compact pump frame
- High quality motor with excellent performance and long service life
- Impeller designed with high efficient hydraulic system
- Low fuel consumption
- LEO engine as default, BS/Honda engine is optional

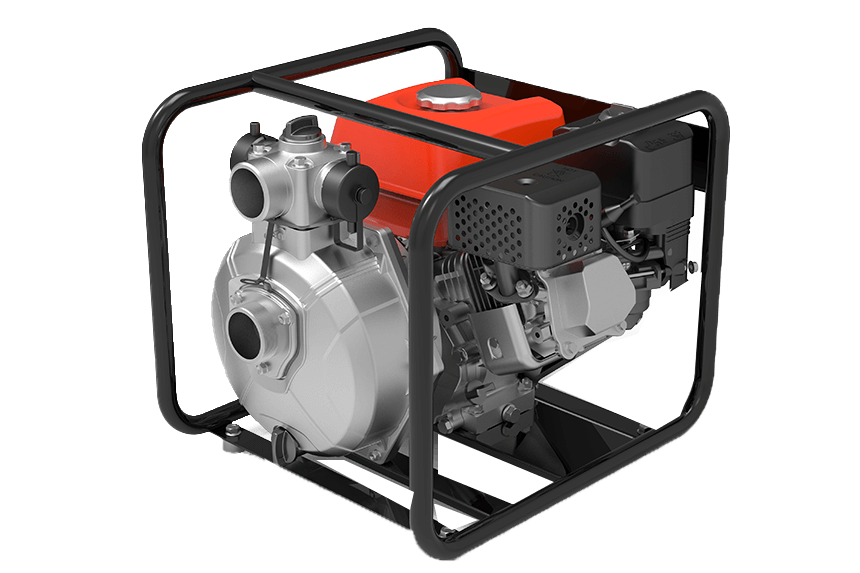

Engine Pump
LGP-H
Gasoline water pumps for transferring clean water.
30 m³/hMax. flow
80 mMax. head
6.5 HPPower
Applications and features
0°C to 40°CLiquid temperature
8 mMax. suction
Product identification
Pump
- Anti-rust cast iron diffuser
- Suck 5 m needs 120 s
- Inlet/outlet: 50 mm / 2 x 38 mm + 1 x 50 mm, 38 mm / 1 x 38 mm + 2 x 25 mm
Engine
- Single cylinder, 4-stroke, Air-cooled
- Max. power: 6.5 HP
- Rated speed: 3600 rpm
- Reliable engine equipped with low engine oil shut off system
Identification code
LGP20HGX200
- L
- LEO Product Style
- GP
- Gasoline Water Pump
- 20
- Inlet/Outlet Diameter
- H
- High Head
- GX200
- Engine
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Frame | Steel |
| 2 | Engine | - |
| 3 | Bracket | Aluminum |
| 4 | Mechanical seal | Carbon/Ceramic |
| 5 | O-ring | NBR |
| 6 | Impeller | Aluminum |
| 7 | Seal ring | NBR |
| 8 | Diffuser | HT200 |
| 9 | Seal ring | NBR |
| 10 | Pipe blanking cap | PP |
| 11 | Seal ring | NBR |
| 12 | Outlet | Aluminum |
| 13 | Gasket | NBR |
| 14 | Pump body | Aluminum |
| 15 | Non-return valve | NBR |
| 16 | Inlet | Aluminum |
| 17 | Filling plug | PA6 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
