- Water supply and drainage for factories, mines, municipal facilities and field irrigation.
- Strengthened aluminium alloy pump body ensures more durable and reliable service
- Original design of the pump body for easy cleanout
- Impeller designed with high efficient hydraulic system
- Honda engine with excellent performance and long service life
- Better sealing effect by using special mechanical seal
- Low fuel consumption
- Honda Engine

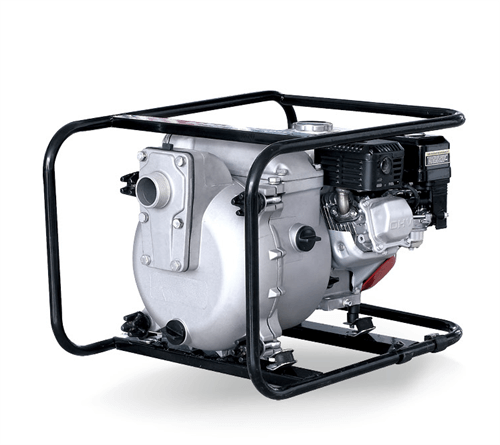

Engine Pump
LGP
Gasoline trash pumps for transferring clean water or trash water.
75 m³/hMax. flow
25 mMax. head
5-9 HPPower range
Applications and features
0°C ~ 40°CLiquid temperature
8 mMax. suction
22 mmMax.diameter of particle
Product identification
Pump
- Aluminum alloy pump body
- Anti-rust cast iron impeller
- Rated suction: 5 m / 120 s
- Inlet/outlet: 50 mm / 50 mm , 80 mm / 80 mm
Engine
- Single cylinder,4-stroke, Air-cooled
- Max.power: 9 HP
- Displacement: 163 cc , 270 cc
- Rated speed: 3600 rpm
Identification code
LGP20T
- L
- LEO Product Style
- GP
- Gasoline Engine Pump
- 20
- Inlet/Outlet Diameter(2")
- T
- Trash pump
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Frame | Steel |
| 2 | Engine | - |
| 3 | Outlet | Aluminum |
| 4 | Seal | NBR |
| 5 | Outlet cover | Aluminum |
| 6 | O-ring | NBR |
| 7 | Plug | - |
| 8 | O-ring | NBR |
| 9 | Pump cover | Aluminum |
| 10 | O-ring | NBR |
| 11 | Mechanical seal | - |
| 12 | Plug | - |
| 13 | Impeller | HT200 |
| 14 | O-ring | NBR |
| 15 | Diffuser | HT200 |
| 16 | O-ring | NBR |
| 17 | O-ring | NBR |
| 18 | Pump body | Aluminum |
| 19 | Seal | - |
| 20 | Inlet | Aluminum |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
