- Sewage treatment for civil engineering, mines, quarries and municipal facilities, etc.
- Water supply and drainage for factories,mins,municipal facilities as well as field irrigation, etc.
- All new design with ergonomic feature
- Reliable 4-stroke gasoline engine with low fuel consumption and high quality crankshaft
- Portable, durable and compact pump frame
- Durable sealing system with special mechanical seal
- Silicon carbide mechanical seal for increased abrasive resistance, longer life and less maintainance
- Pump body can easily disassembled and assembled for cleaning out debris, or pump repair

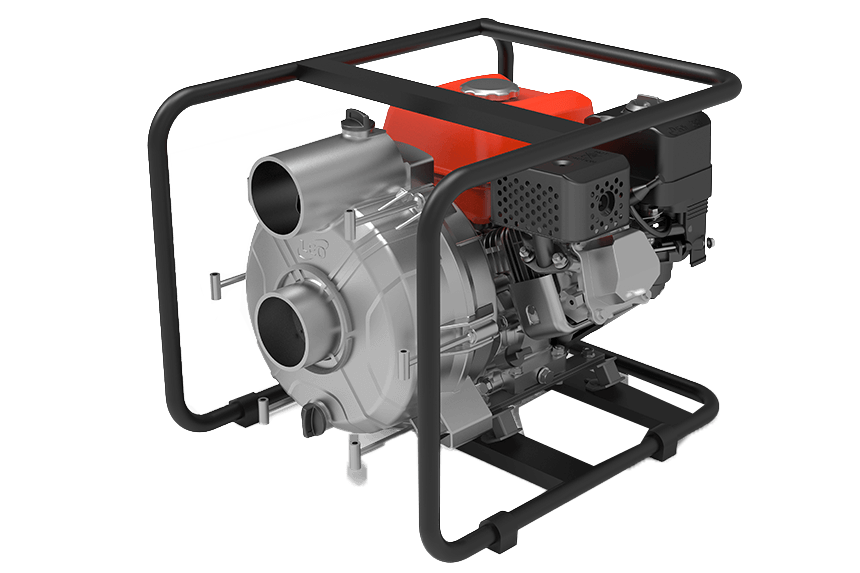

Engine Pump
LGP
Gasoline sewage pumps for transferring slurry and liquids containing mud, sand, small rocks and other debris less than 22 mm in diameter.
60 m³/hMax. flow
30 mMax. head
6.5 HPPower
Applications and features
0°C - 40°CLiquid temperature
8 mMax. suction
22 mmMax. particle diameter
Product identification
Pump
- Anti-rust cast iron impeller and diffuser
- Suck 5 m needs 120 s
- Inlet/outlet: 3"
Engine
- Single cylinder, 4-stroke, Air-cooled
- Max.power: 6.5 HP
- Rated speed: 3600 rpm
- Reliable engine equipped with low engine oil shut off system
Identification code
LGP30W
- L
- LEO Product Style
- GP
- Gasoline Sewage Pump
- 30
- Inlet/Outlet Diameter(3")
- W
- Sewage
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Frame | Steel |
| 2 | Engine | - |
| 3 | Pump cover | Aluminum |
| 4 | O-ring | NBR |
| 5 | Mechanical seal | Silicon carbide / Silicon carbide |
| 6 | Impeller | HT200 |
| 7 | O-ring | NBR |
| 8 | Diffuser | HT200 |
| 9 | Non-return valve | NBR |
| 10 | Pump body | Aluminum |
| 11 | Plug | ABS |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
