- Water supply and drainage for factories, mines, municipal facilities, and field irrigation.
- Strengthened cast-iron pump body ensures more durable and reliable service
- Impeller designed with high efficient hydraulic system
- High quality engine with excellent performance and long service life
- Better sealing effect by using special mechanical seal
- Low fuel consumption

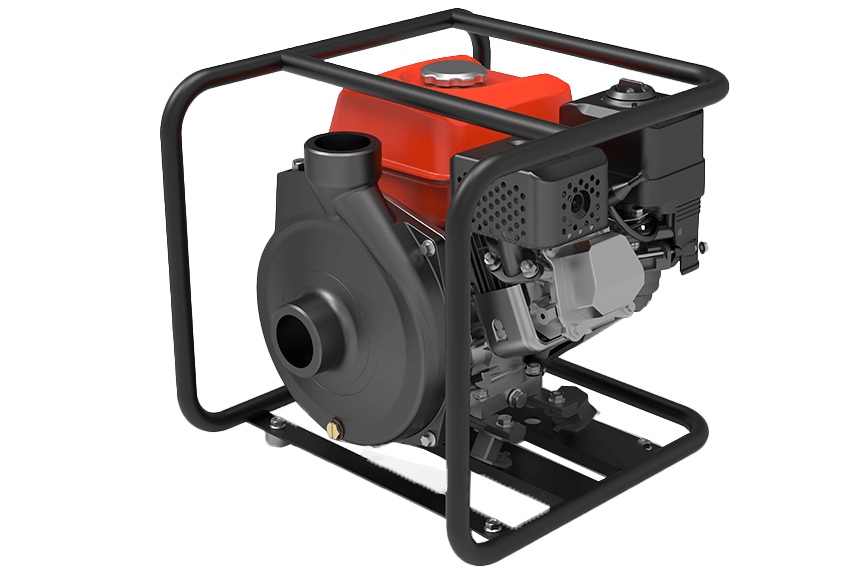

Engine Pump
LGP
Gasoline cast iron centrifugal pumps for transferring clean water.
50 m³/hMax. flow
50 mMax. head
6.5 HPPower
Applications and features
0°C - 40°CLiquid temperature
8 mMax. suction
Product identification
Pump
- Anti-rust cast iron pump body
- Aluminum alloy impeller
- Max. suction: 8 m, suck 5 m needs 120 s
- Inlet/outlet: 50 mm
Engine
- Single cylinder, 4-stroke, Air-cooled
- Max. power: 6.5 HP
- Rated speed: 3600 rpm
- Reliable engine equipped with low engine oil shut off system
Identification code
LGP20iA
- L
- LEO Product Style
- GP
- Gasoline Engine Pump
- 20
- Inlet/Outlet Diameter (2")
- i
- Features
- A
- Symbol for Product Optimization
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Frame | Steel |
| 2 | Engine | - |
| 3 | Pump cover | HT200 |
| 4 | O-ring | NBR |
| 5 | Mechanical seal | Carbon/Ceramic |
| 6 | Impeller | Aluminum |
| 7 | Pump body | HT200 |
| 8 | Plug | HPb59-1 |
| 9 | O-ring | NBR |
| 10 | Plug | HPb59-1 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
Discuss your pump requirements
For product selection, availability or project support, contact our team through the official contact channel.
