- Water supply and drainage for factories, mines, municipal facilities and field irrigation.
- Strengthened pump body ensures more durable and reliable service
- Better sealing effect by using special mechanical seal
- Multiple direction outlet for convenient use
- Improved starter handle for easier starting
- 20% increased loading quantity thanks to new frame structure
- Less gasoline consumption
- Powerful/durable LEO engine

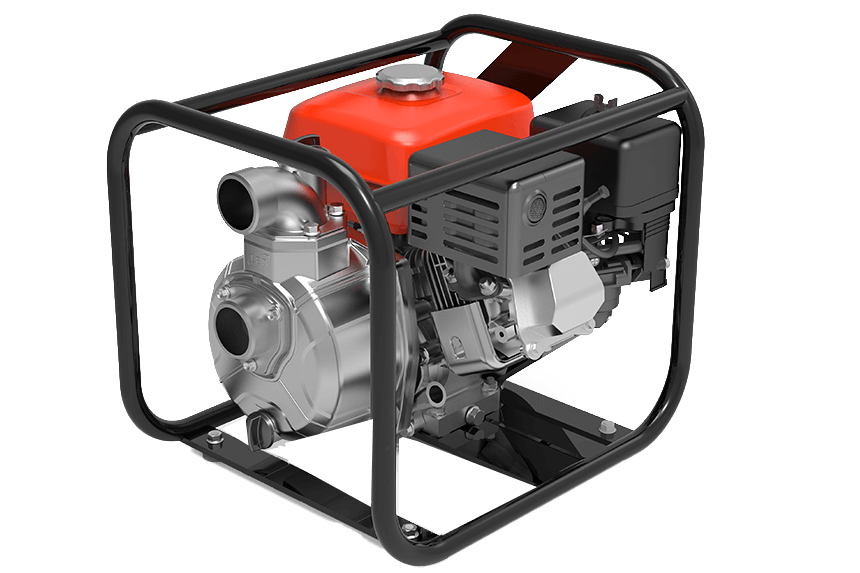

Engine Pump
LGP-C
Gasoline water pumps for clean-water transfer, water supply and drainage.
60 m³/hMax. flow
30 mMax. head
6.5 HPPower
Applications and features
0°C - 40°CLiquid temperature
8 mMax. suction
Product identification
Pump
- Anti-rust cast iron impeller and diffuser
- High quality forged steel crankshaft
- Max. suction: 8 m. Suck 5 m needs 120 s
- Inlet/outlet: 50 mm / 80 mm
Engine
- Single cylinder, 4-stroke, Air-cooled
- Max. power: 6.5 HP
- Rated speed: 3600 rpm
- Reliable engine equipped with low engine oil shut off system
Identification code
LGP20C
- L
- LEO Product Style
- GP
- Gasoline Water Pump
- 20
- Inlet/Outlet Diameter (2")
- C
- Symbol for Product Optimization
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Frame | Steel |
| 2 | Gasoline engine | - |
| 3 | Pump cover | ADC12 |
| 4 | O-ring | NBR |
| 5 | Mechanical seal | Carbon/Ceramic |
| 6 | Impeller | Cast iron |
| 7 | Diffuser | Cast iron |
| 8 | O-ring | NBR |
| 9 | Pump body | Aluminum |
| 10 | Gasket | NBR |
| 11 | Outlet | Aluminum |
| 12 | Filling plug | PA6 |
| 13 | Non-return valve | NBR |
| 14 | Inlet | Aluminum |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
