- Office and other commercial-building renovations
- Wall-mounted toilets in basements below sewer level
- Washing machines and dishwashers
- Toilets, wash basins, bathtubs and shower cabinets where a natural slope to the main soil pipe cannot be established

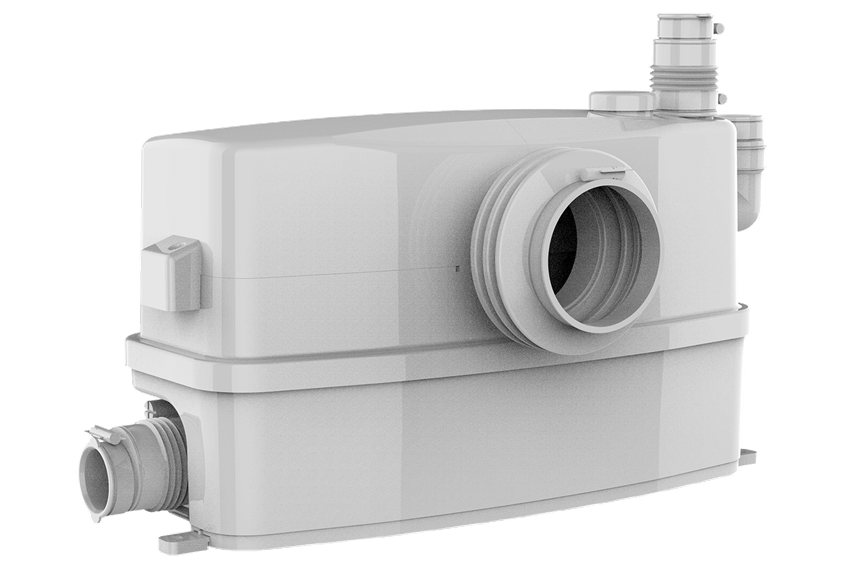

Domestic Lifting Station
WC600A
Domestic lifting stations are designed to pump wastewater where it cannot flow directly to the sewer by natural downward slope.
5.1 m³/hMax. flow
8.5 mMax. head
600 WPower
Applications and features
50°CMax. liquid temperature
35°CMax. ambient temperature
4 - 10PH value
The pump must not be used for strong chemicals or solventsRestriction
Product identification
Pump
- Compact and slim for easy installation
- Automatic start and stop
- Top quality air switch and carbon filter from Germany
- Circuit board with time delay function and low voltage protection
- Low noise
- New blade and support with better cutting performance
- Suitable for sewage water containing toilet paper and faeces with cutting blade
Identification code
WC600A
- WC
- Domestic Lifting Station
- 60
- Power (×10W)
- 0
- Improve
- A
- Symbol for Product Optimization
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Circuit board | |
| 2 | Upper cover | ZL102 |
| 3 | Rotor | |
| 4 | Stator | |
| 5 | Bearing seat | ZL102 |
| 6 | Stator shield | ZG304 |
| 7 | Impeller | PP-G |
| 8 | Cutting blade | 304 |
| 9 | Stirrer | PP-G |
| 10 | Motor cover | ABS |
| 11 | Air witch | |
| 12 | Capacitor | |
| 13 | Tank cover | ABS |
| 14 | Pump body | PP-G |
| 15 | Cutting ring | 304 |
| 16 | Outlet cover | ABS |
| 17 | cover | PP-G |
| 18 | 3-way | PP-G |
| 19 | Connector | PP-G |
| 20 | Way valve parts | |
| 21 | Outlet pipe | EPDM |
| 22 | Feed pipe | EPDM |
| 23 | Outlet pipe | NBR |
| 24 | water tank | ABS |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
