- Water supply and drainage for factories, mines, municipal facilities and field irrigation.
- All new design with ergonomic feature
- High lift series with LEO high efficient hydraulic system
- Reliable 4-stroke diesel engine with low fuel consumption and high quality crankshaft
- Portable, durable and compact pump frame
- Durable sealing system with special mechanical seal
- Optional outlet selection

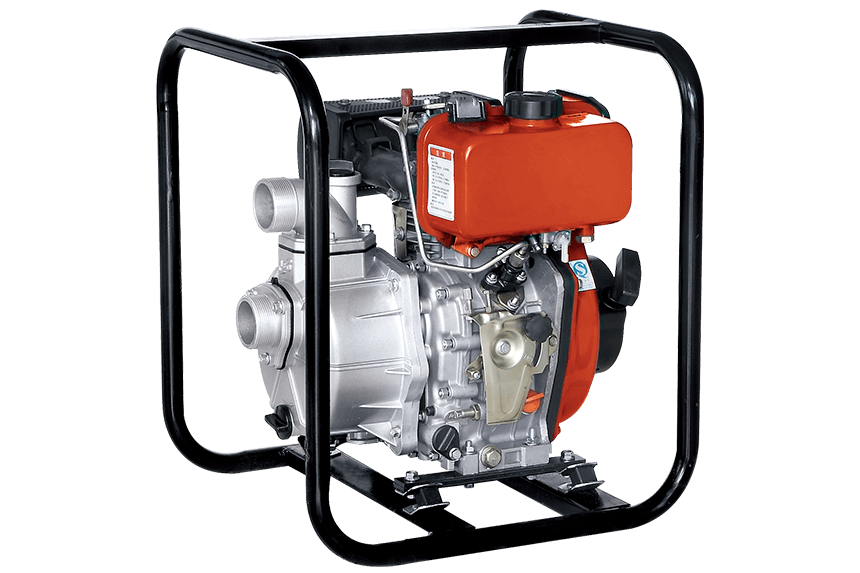

Engine Pump
LDP
Diesel water pumps for clean-water transfer, water supply and drainage.
72 m³/hMax. flow
30 mMax. head
3.8 HPPower
Applications and features
0°C - 40°CLiquid temperature
8 mMax. suction
Product identification
Pump
- Suction reference: 5 m needs 120 s
- Inlet / outlet: 2" / 3" / 4"
- Anti-rust cast iron impeller and diffuser
Engine
- Rated speed: 3600 rpm
- Single cylinder, 4-stroke, air-cooled
- Reliable engine equipped with low engine oil shut-off system
Identification code
LDP20A
- L
- LEO Product Style
- DP
- Diesel Water Pump
- 20
- Inlet/Outlet Diameter (2")
- A
- Symbol for Product Optimization
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Frame | Steel |
| 2 | Engine | - |
| 3 | Pump cover | Aluminum |
| 4 | O-ring | NBR |
| 5 | Mechanical seal | carbon/ceramic |
| 6 | Impeller | HT200 |
| 7 | Diffuser | HT200 |
| 8 | O-ring | NBR |
| 9 | Pump body | Aluminum |
| 10 | Seal | NBR |
| 11 | Outlet | Aluminum |
| 12 | Plug | ABS |
| 13 | Non-return valve | NBR |
| 14 | Inlet | Aluminum |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
