- Lifting water from the well
- Sprinkling irrigation in garden
- Pressure boosting of running water
- Supporting equipment

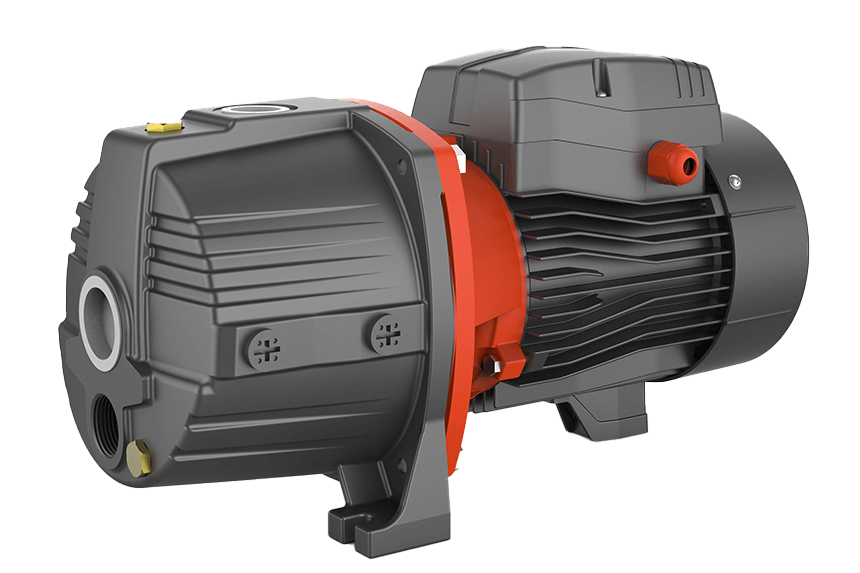

Jet Pump
AJDm
Jet pump for deep wells for transferring clean water or other liquids similar to water in physical and chemical properties.
1.8 m³/hMax. flow
70 mMax. head
0.55-1.1 kWPower range
Applications and features
+60°CMax. liquid temperature
+40 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosures
Product identification
Pump
- Cast iron pump body and support under special anti-rust treatment
- Stainless steel impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
Identification code
AJDm552H
- A
- LEO Product Style
- JD
- Jet Pump for Deep Well
- m
- Single Phase Motor (Omitted for three-phase motor)
- 55
- Power (x10W)
- 2
- Inlet Diameter (")
- H
- High Head
Swipe horizontally to compare model, phase, power and all flow/head values.
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Elbow | HT200 |
| 2 | Pump body | HT200 |
| 3 | Water outlet cover | PP-GF30 |
| 4 | Impeller | PP-GF30 |
| 5 | Mechanical seal | - |
| 6 | Bracket cover | AISI304 |
| 7 | Bracket | ADC12 |
| 8 | Fan cover | PP |
| 9 | Fan | PP-GF10 |
| 10 | End plate | ADC12 |
| 11 | Cover box | PP-GF20 |
| 12 | Wiring base assembly | PC |
| 13 | Capacitor | - |
| 14 | Stator | - |
| 15 | Rotor | - |
| 16 | Bearing | - |
| 17 | Lance tube | PP-GF30 |
| 18 | Nozzle | PP-GF30 |
| 19 | Ejector | HT200 |
| 20 | Bushing | HPb59-1 |
| 21 | Sealing bowl | NBR |
| 22 | Switch | HPb59-1 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
