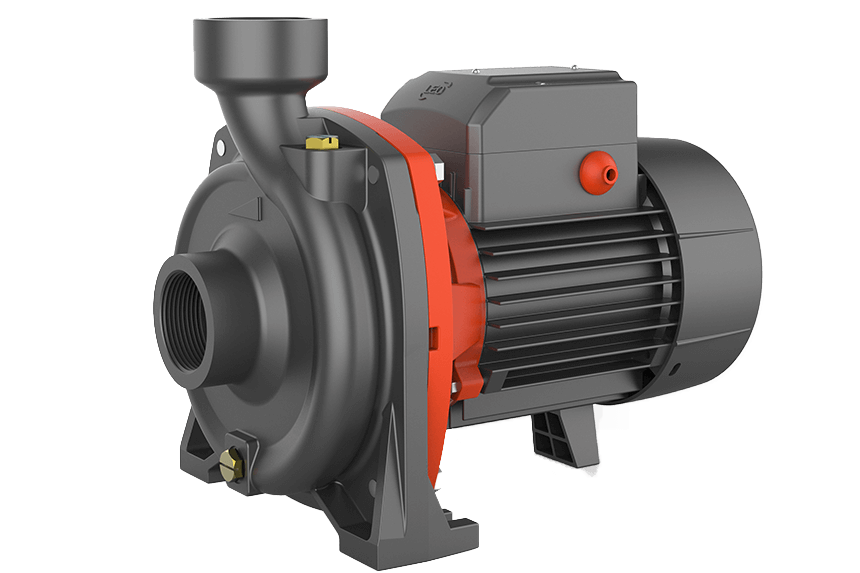

Centrifugal Pump
XGm
Centrifugal pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
14.7 m³/hMax. flow
17.5 mMax. head
0.6-0.75 kWPower range
Applications and features
+60°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- IE 2 motor for XG/1A
Identification code
XGm1A
- XG
- Centrifugal Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 1
- Semi-open Impeller
- A
- A: Original Impeller
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | HT200 |
| 2 | Impeller | HPb59-1 |
| 3 | Mechanical seal | - |
| 4 | Bracket cover | AISI304 |
| 5 | Bracket | ADC12 |
| 6 | Fan cover | PP |
| 7 | Fan | PP-GF10 |
| 8 | End plate | ADC12 |
| 9 | Cover box | ABS |
| 10 | Capacitor | - |
| 11 | Wiring base assembly | PC |
| 12 | Stator | - |
| 13 | Rotor | - |
| 14 | Deep groove ball bearing | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
