- Hot water circulation and heating system
- Air-conditioning system
- Industrial circulation system
- General pressure boosting in household

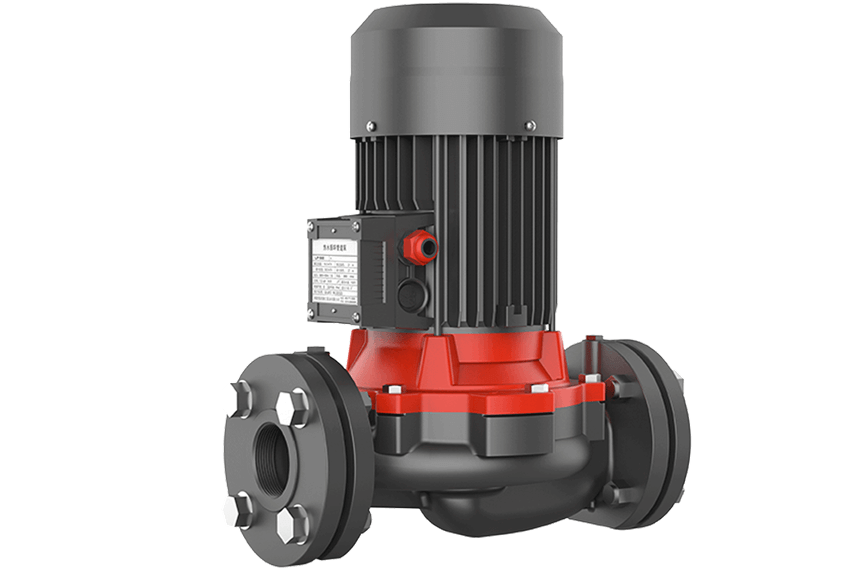

Circulating Pump
LP
Booster pumps for hot water circulation and heating systems, air-conditioning systems, industrial circulation, and household pressure boosting.
32 m³/hMax. flow
36 mMax. head
1.5-2.2 kWPower range
Applications and features
2°C - 100°CLiquid temperature
B / IP44Insulation / Enclosure
Product identification
Pump
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
Identification code
LP(m)1500
- LP
- LEO Circulation Pump
- (m)
- Single Phase Motor (Omitted for three-phase motor)
- 1500
- Power (W)
Swipe horizontally to compare model, phase, power and all flow/head values.
Hydraulic performance curves
Dimensions and connections
Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Flange | HT200 |
| 2 | Pump body | HT200 |
| 3 | Impeller | Brass |
| 4 | Support | HT200 |
| 5 | Bearing | - |
| 6 | Rotor | - |
| 7 | Fan cover | 08F |
| 8 | Fan | PP |
| 9 | Terminal box | ABS |
| 10 | Rear cover | ZL102 |
| 11 | Stator | ABS |
| 12 | Capacitor | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
Discuss your pump requirements
For product selection, availability or project support, contact our team through the official contact channel.
