Peripheral Pump

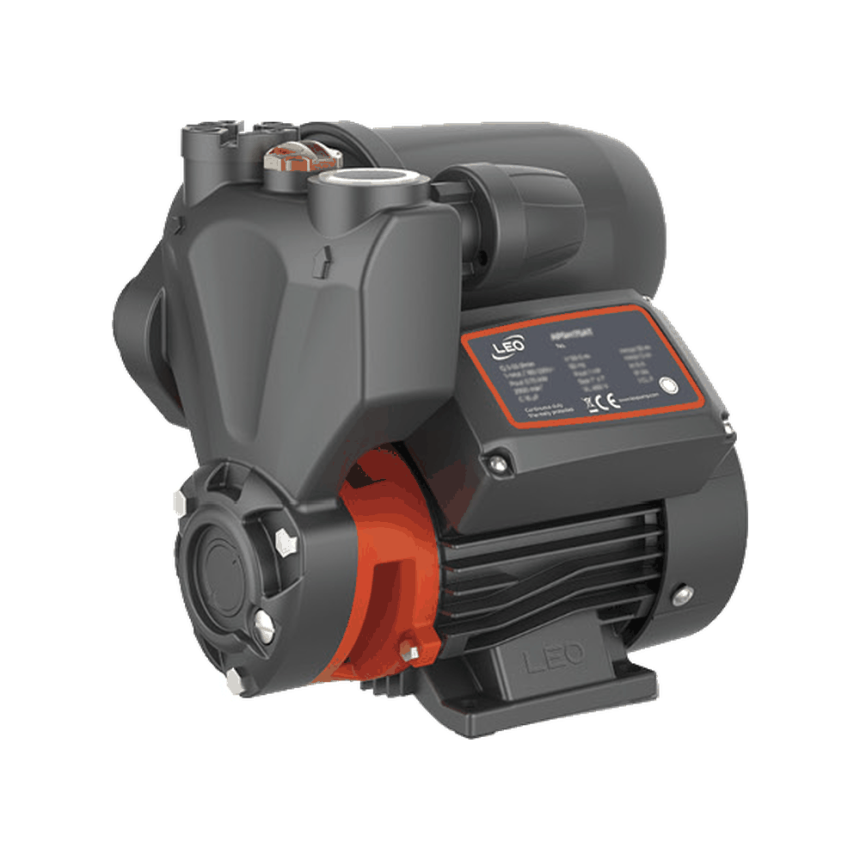

AKSm-AT
AKSm automatic self-priming peripheral pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
3 m³/hMax. flow
55Max. head
0.13-0.75 kWPower range
Applications and features
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- 2-second delayed start after plug into the socket to avoid potential danger caused by electric sparks
- Non-water protection
- Automatic detection if there is coming water from pump inlet
- Anti-blocking protection
- Operating status display (Powering up/Running/No Water)
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
Identification code
AKSm37AT
- A
- LEO Product Style
- K
- Peripheral Pump
- S
- Self-priming
- m
- Single Phase Motor (Omitted for three-phase motor)
- 37
- Power (×10 W)
- AT
- Automatic
Swipe horizontally to compare model, phase, power and all flow/head values.

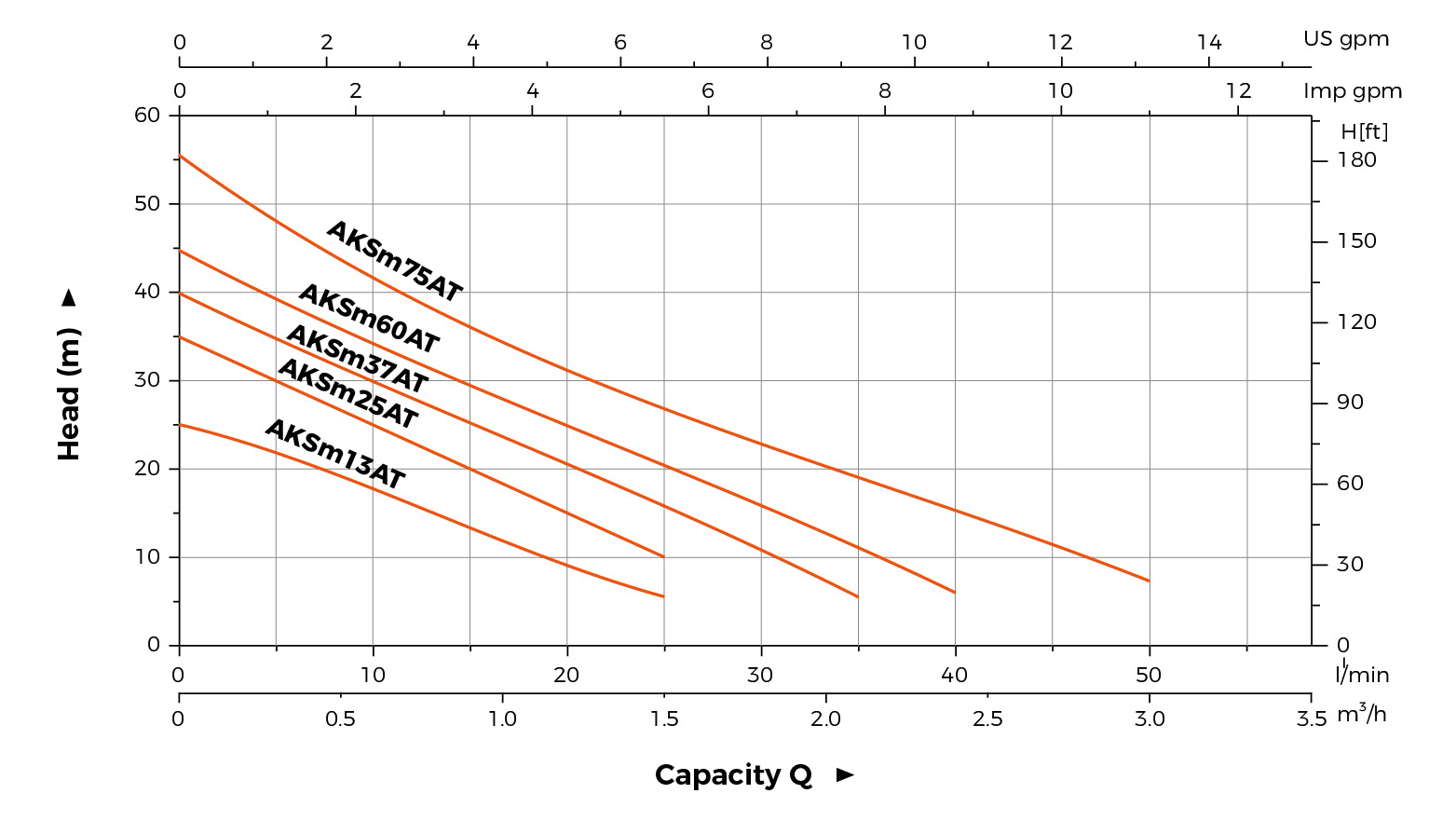

Hydraulic performance curves

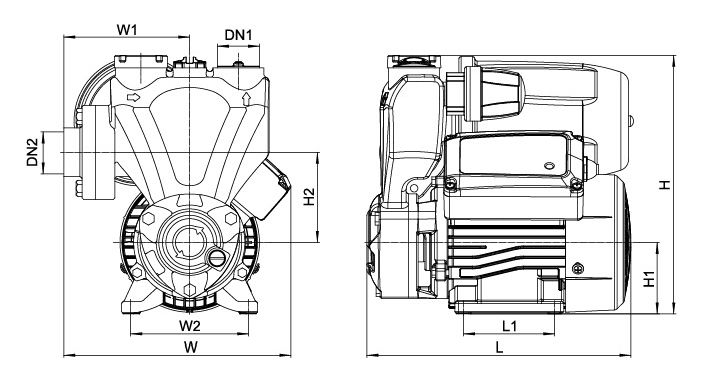

Dimensions and connections

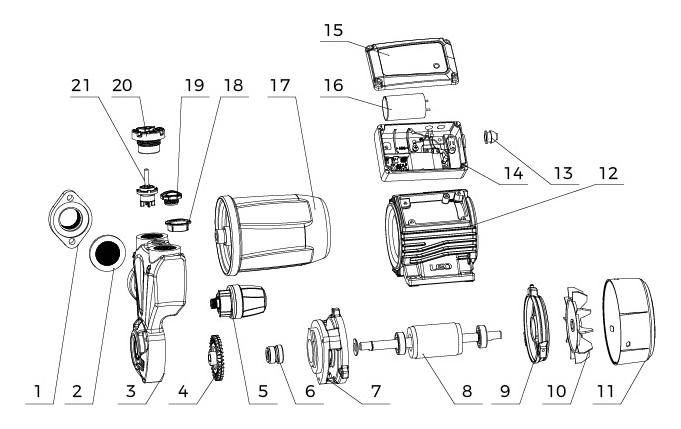

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Water supply connector | HT200 |
| 2 | Rubber washer | NBR |
| 3 | Pump body | HT200 |
| 4 | Impeller | HPb59-1 |
| 5 | Pressure switch | - |
| 6 | Mechanical seal | - |
| 7 | Bracket | HT200 |
| 8 | Rotor | - |
| 9 | End plate | ADC12 |
| 10 | Fan | PP |
| 11 | Fan cover | PP-GF10 |
| 12 | Stator | - |
| 13 | Outlet nozzle | EPDM |
| 14 | Cover box | ABS |
| 15 | Switch cover | ABS |
| 16 | Capacitor | - |
| 17 | Pressure tank | - |
| 18 | Dust cap | PE |
| 19 | Filling plug | HPb59-1 |
| 20 | Pump cranium | PA66-GF30 |
| 21 | Check valve | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
