Peripheral Pump

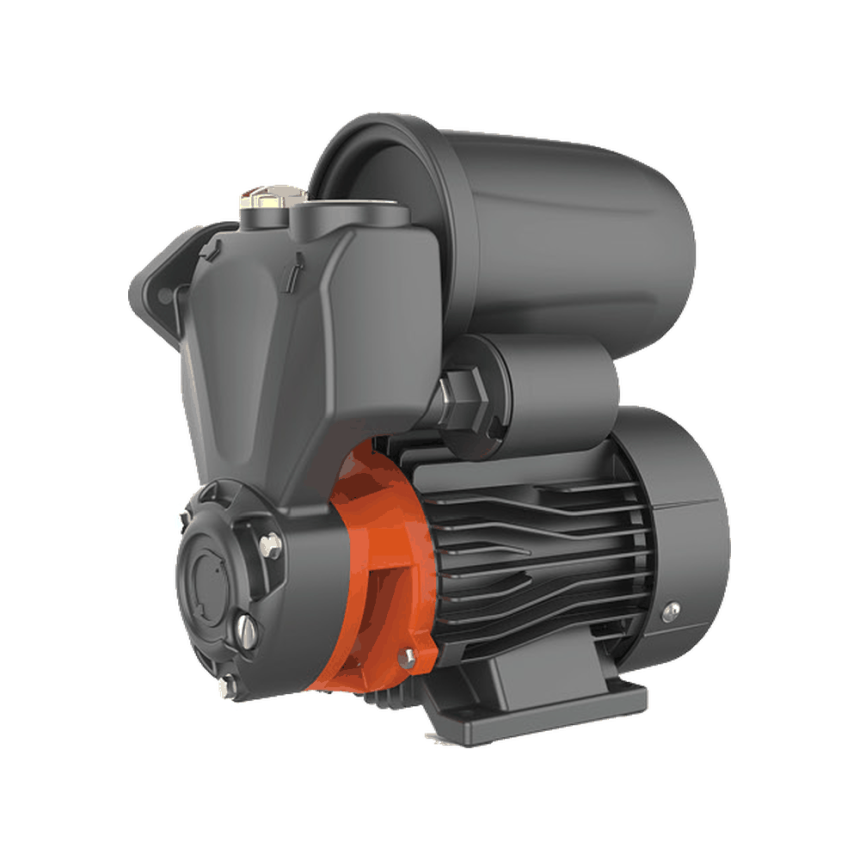

AKSm-A
Self-priming peripheral pumps with air tank for transferring clean water or other liquids similar to water in physical and chemical properties.
3.6 m³/hMax. flow
55Max. head
0.13-0.75 kWPower range
Applications and features
+60°CMax. liquid temperature
+8 mMax. suction
+50°CMax. ambient temperature
F / IPX4Insulation / Enclosure
Product identification
Pump
- With 2L pressure tank for automatic operation
- Special anti-rust treatment
- Brass impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Copper winding
- Built-in thermal protector
Identification code
AKSm37A
- A
- LEO Product Style
- K
- Peripheral Pump
- S
- Self-priming
- m
- Single Phase Motor (omitted for three-phase motor)
- 37
- Power (×10 W)
- A
- Air Tank
Swipe horizontally to compare model, phase, power and all flow/head values.

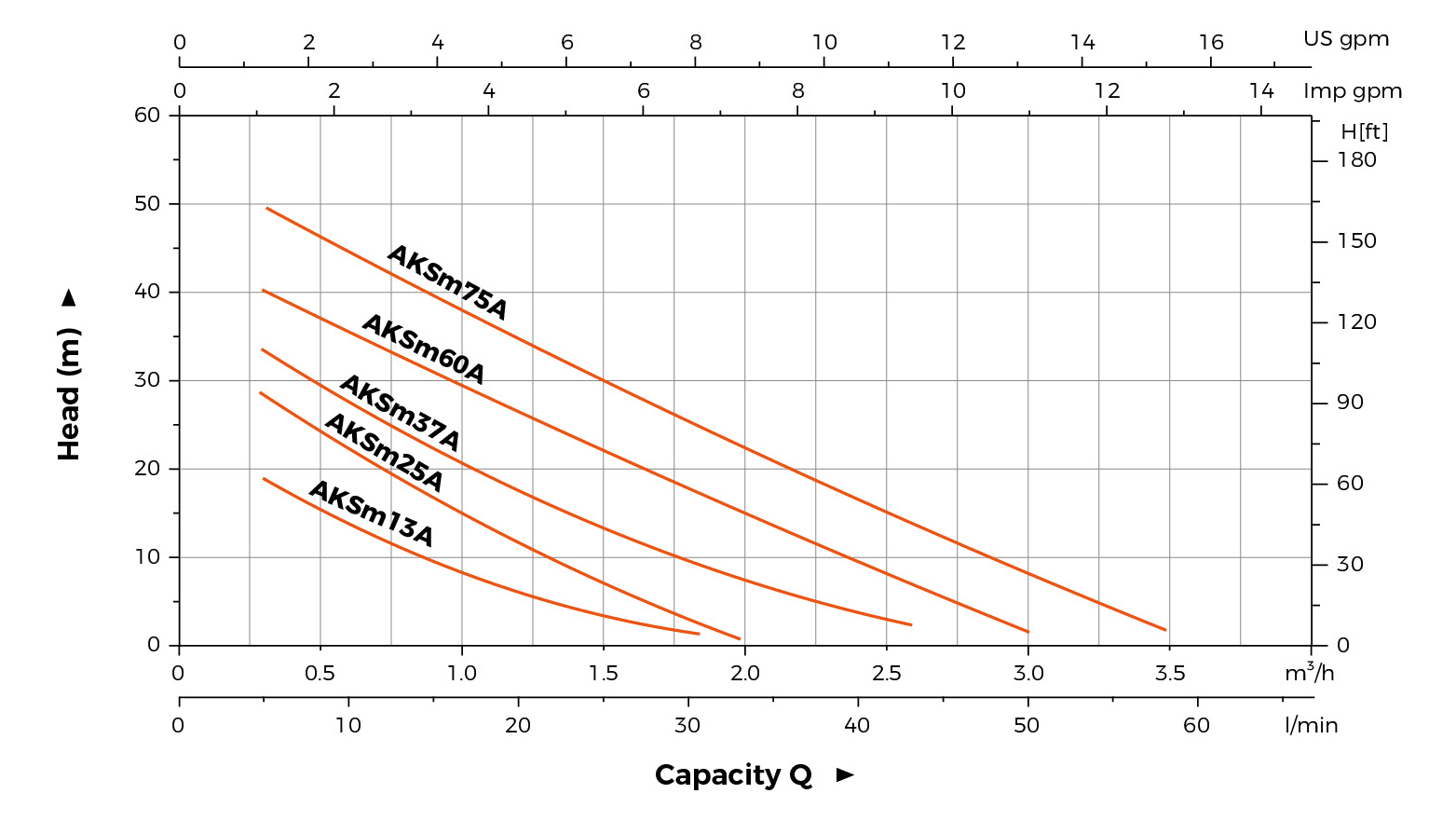

Hydraulic performance curves

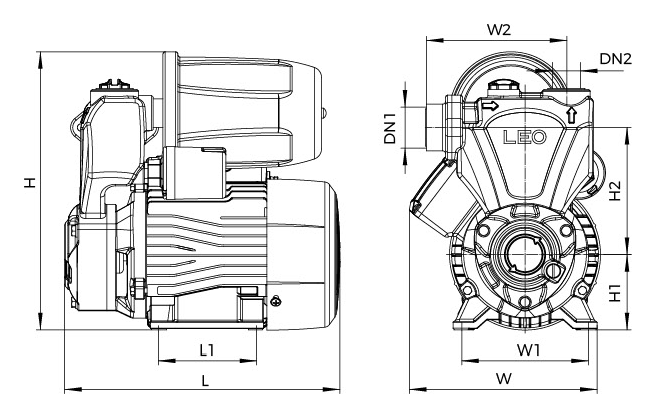

Dimensions and connections

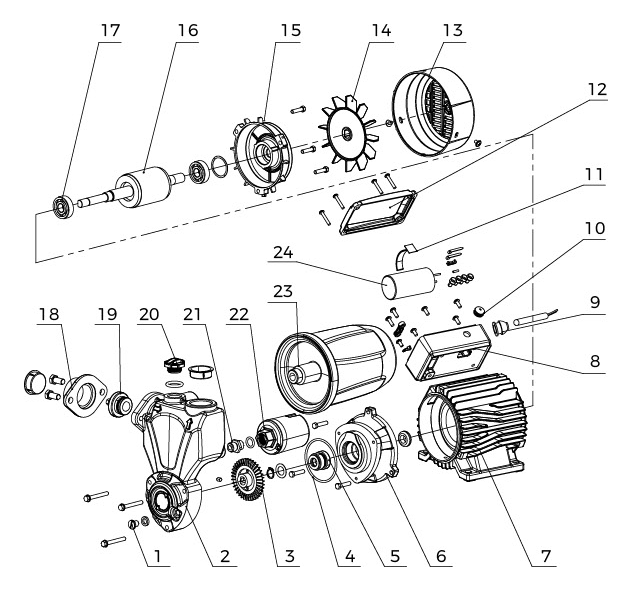

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Screw | - |
| 2 | Pump body | HT200 |
| 3 | Impeller | HPb59-1 |
| 4 | O-ring | NBR |
| 5 | Mechanical seal | - |
| 6 | Support | HT200 |
| 7 | Stator | - |
| 8 | Cover box | PA6 |
| 9 | Outlet nozzle | ABS |
| 10 | Outlet nozzle | PP-GF10 |
| 11 | Capacitor clamp | PP |
| 12 | Cover box lid | PA6 |
| 13 | Fan cover | - |
| 14 | Fan | - |
| 15 | End plate | HT200 |
| 16 | Rotor | - |
| 17 | Bearing | - |
| 18 | Non-return valve | HT200 |
| 19 | Connector | - |
| 20 | Filling plug | - |
| 21 | Transfer | - |
| 22 | Pressure switch | - |
| 23 | Tank | - |
| 24 | Capacitor | - |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
